Mounting the Charging Station Column
Qualified person
CAUTION
Risk of injury due to weight of product
Injuries may result if the product is lifted incorrectly or dropped while being transported or mounted.
- Transport and lift the product carefully. Take the weight of the product into account.
- Wear suitable personal protective equipment for all work on the product.
For a concrete foundation produced by the operator, billing, design and production are exclusively the responsibility of the operator or the company that carried out mounting on behalf of the operator.

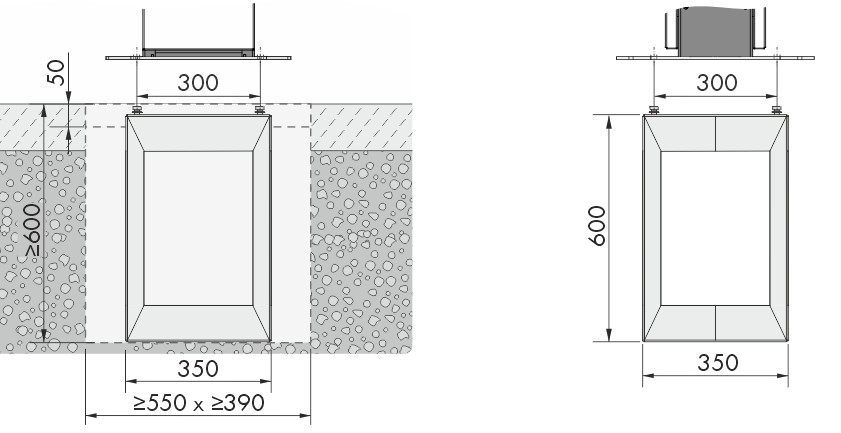

Dimensions of the foundation hole (dimensions in mm)
Procedure:
- Ensure that the AC connection cable and communication cables are long enough to connect to the product.

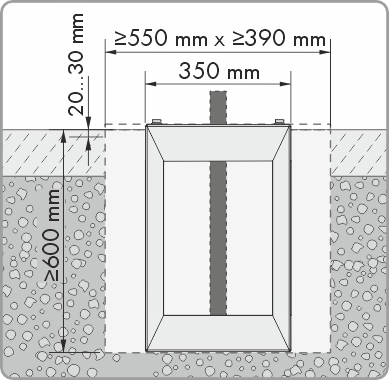

- Excavate the foundation hole with the following dimensions: width ≥550 mm x height ≥600 mm x depth ≥390 mm.

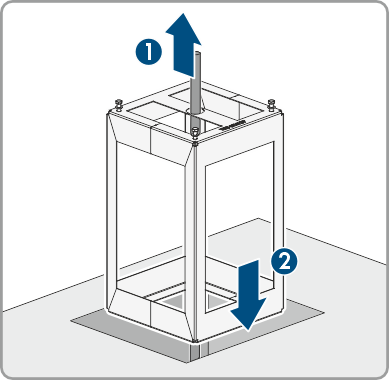

- Insert the AC cable and communication cables upward through the opening in the embedded section into the hole.

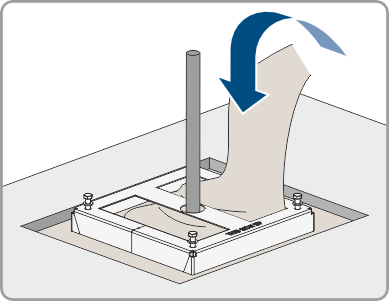

- Stabilize the embedded section of the charging station column using class C30/37 concrete.
- Let the concrete completely cure before starting to assemble the charging station column.
- Remove the 4 screws (M10) with the 4 washers from the embedded section.

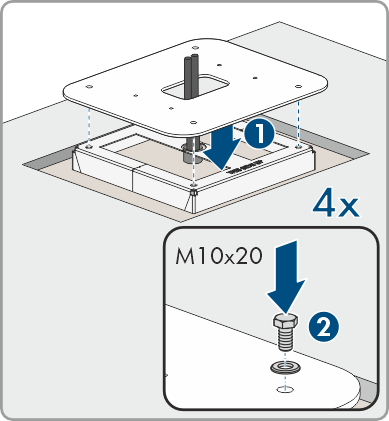

- Position the base plate on the 4 holes of the embedded section of the charging station column. Secure the base plate with the 4 screws (M10x20) and the 4 (M10) washers (AF16).

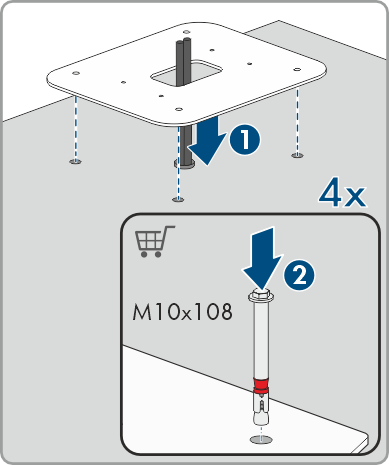

- Optional: You can also directly fasten the base plate to a suitable support surface. To do so, drill 4 holes and secure the base plate using 4 heavy-duty anchors (M10x108, not in the scope of delivery) (AF16).

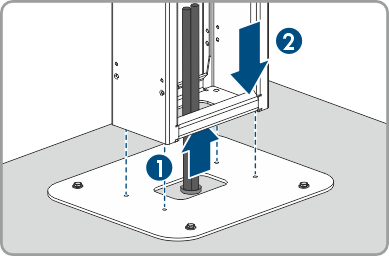

- When putting on the middle section, guide the AC cable and communication cables through the middle section of the charging station column. Position the middle section on the 4 holes in the base plate. Pay attention to the weight.

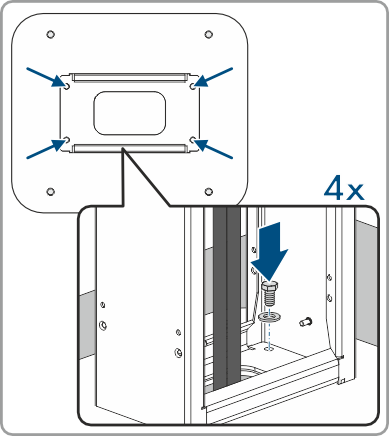

- Use the 4 screws (M8x12) and 4 washers (M8) to secure the middle section of the charging station column (AF13, tightening torque: 25 Nm).

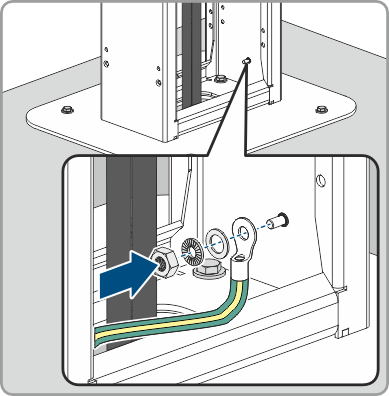

- Additional ground: Connect the grounding conductor to the grounding bolts of the charging station column. Secure the crimped terminal lug to the grounding bolts. To do so, use the washer (M6), serrated lock washer (M6) and nut (M6) in the scope of delivery of the charging station column.

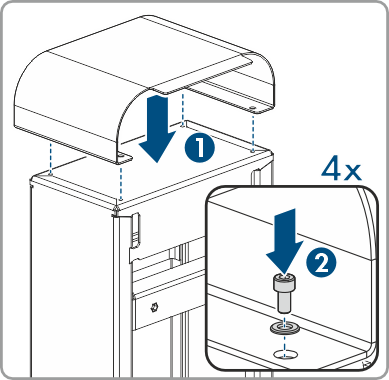

- Use the 4 screws (M5x10) and 4 washers (M5) to secure the lid of the charging station column.

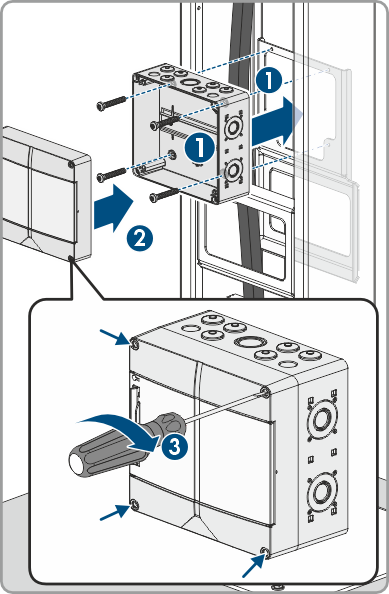

- Optional: You can attach an AC distribution box (width 200 mm, height 200 mm, depth 122 mm) to the middle section of the charging station column at the specified position.

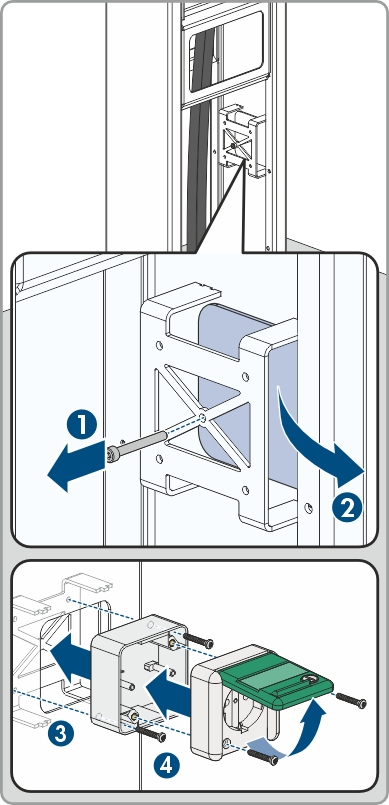

- Optional: You can attach a socket (IP44 / width 75 mm, height 75 mm, depth 58 mm) to the side of the middle section of the charging station column at the specified position.

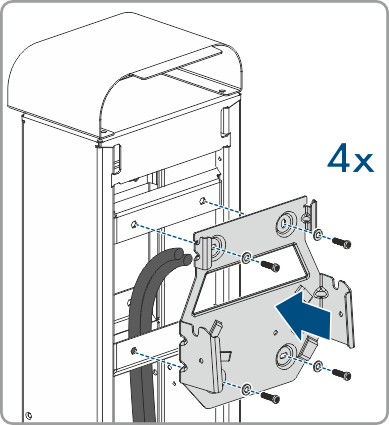

- Attach the wall mounting bracket (included with the charging station) using the 4 screws (M6x14) and 4 washers (M6) included with the charging station column.

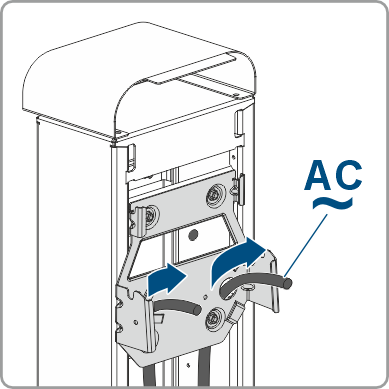

- Feed the AC connection cable through the right opening and the communication cables through the left opening from the rear through the wall mounting bracket.
- Complete the remaining assembly steps ( > Wall Mounting).
- Make the electrical connection ( > Electrical Connection).

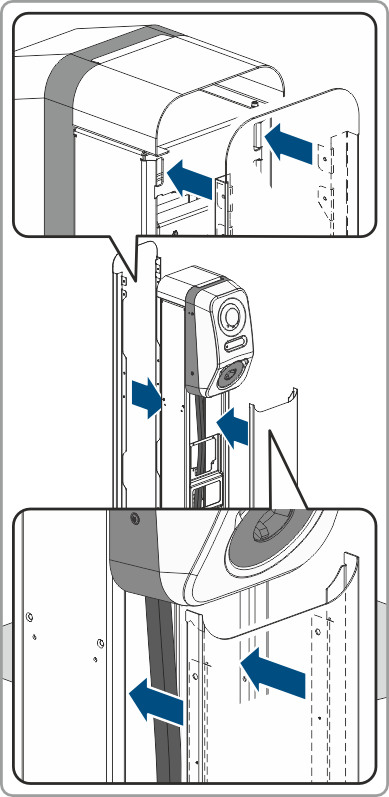

- Hook the cover at the front and rear of the middle section of the charging station column. In the middle section of the charging station column, there are two carrier pins onto which the covers must be hooked.

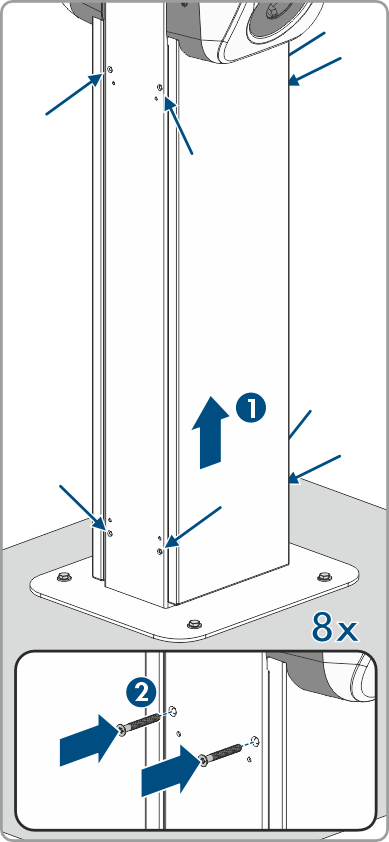

- Secure the two covers from the side with the 8 screws (M5x40) in the scope of delivery of the charging station column (TX25, tightening torque: 5 Nm).

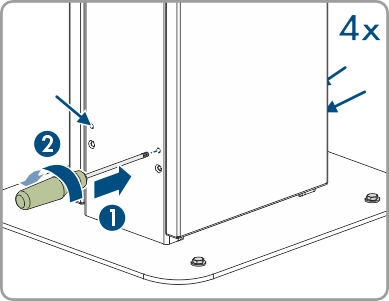

- Lock the covers. To do so, insert a screwdriver through the opening and rotate the set screw counterclockwise until the stop (TX25, tightening torque: 5 Nm). Repeat the procedure at the remaining 3 positions.

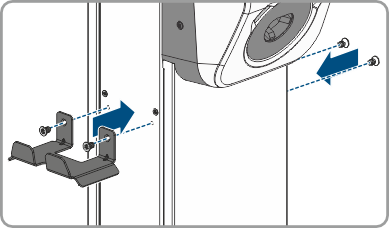

- Attach the cable holder to the charging station column (M6x10). Seal all unused openings with the sealing plugs.
