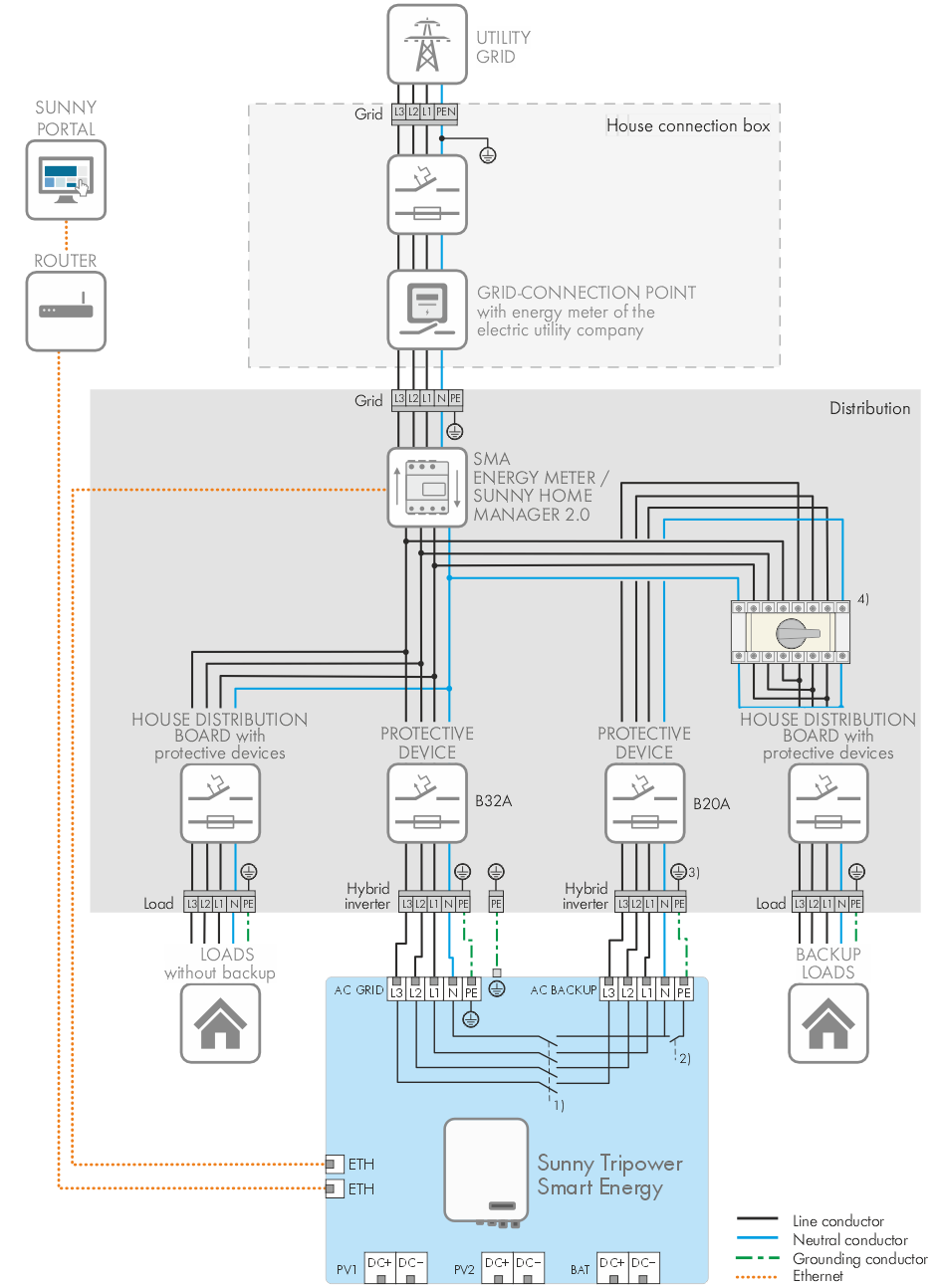

Circuitry overview with battery-backup system and optional transfer switch

Circuitry overview with battery-backup system and optional transfer switch (example)

Footnotes:

1. opens during battery-backup operation and with disabled AC backup

2. closes only during battery-backup operation

3. grounding conductor is to be connected during activated battery-backup operation and connected to the grounding busbar in addition

4. optional manual switch

   • for supplying the entire house

   • for low-noise operation of the inverter

   • additionally, the inverter is to be parameterized according to the operating mode
