Circuitry overview with battery-backup system

9827236620

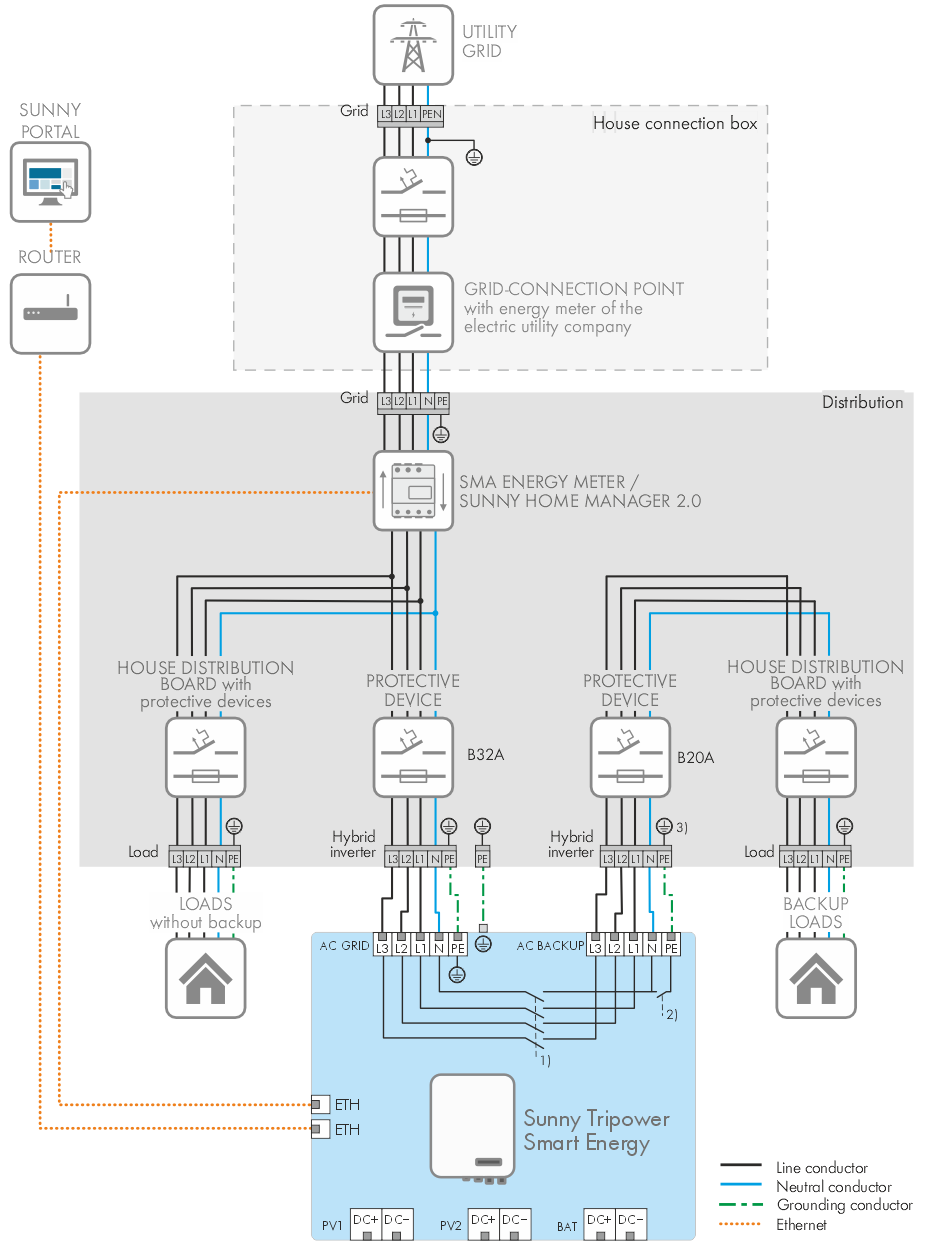

Circuitry overview with battery-backup system (example)

Footnotes:

  1. opens during battery-backup operation

  2. closes during battery-backup operation

  3. grounding conductor must be connected separately

    Circuitry overview without battery-backup system
    Circuitry overview with battery-backup system and optional transfer switch
