Mounting the Inverter
Qualified person
Additionally required material (not included in the scope of delivery):
2 pcs M6 screws, suitable for the support surface and weight of the inverter.
2 washers suitable for the screws
Where necessary, 2 screw anchors suitable for the support surface and the screws
CAUTION
Risk of injury due to weight of product
Injuries may result if the product is lifted incorrectly or dropped while being transported or mounted.
- Wear suitable personal protective equipment for all work on the product.
Procedure:

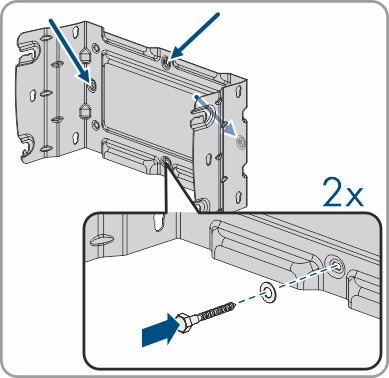

- Align the mounting bracket horizontally and mark the position of the drill holes. Use either the 2 holes in the center of the wall mounting bracket, or 1 hole each on the left and right.
- Set the mounting bracket aside and drill the marked holes.
- Insert screw anchors into the drill holes if the support surface requires them.
- Tighten the mounting bracket horizontally with screws and washers. Ensure the mounting bracket is correctly aligned.
- The mounting bracket is installed correctly.

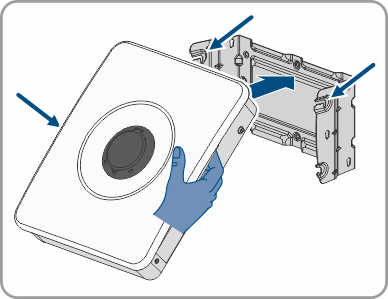

- Lift the inverter with the help of the indentations on the enclosure and suspend it at a 45° angle in the top guide rails of the mounting bracket with the top 2 rivets.

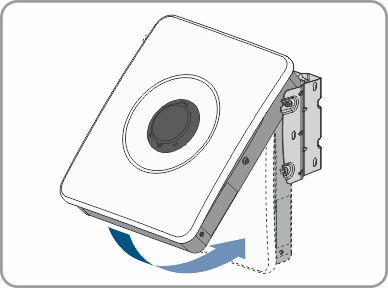

- Carefully rotate the bottom of the inverter toward the support surface and place it at a 90° angle to the base.

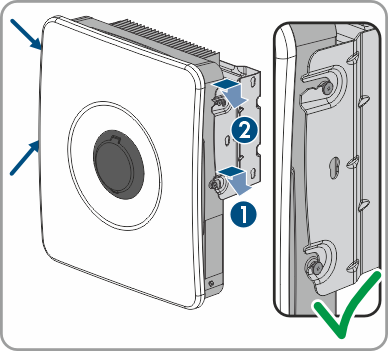

- Engage the top and bottom rivets in the corresponding recesses.
- Make sure that the inverter is securely attached by carefully moving the enclosure back and forth.
