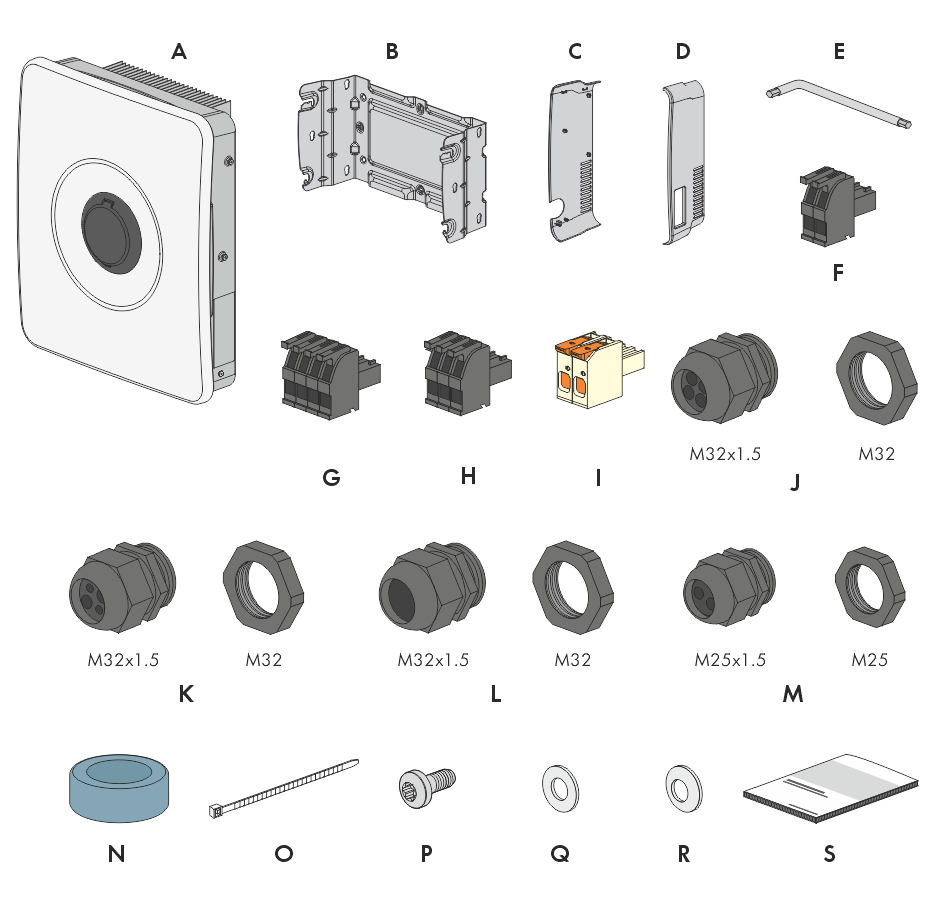

Scope of delivery for SBSE3.6-50 / SBSE4.0-50 / SBSE5.0-50 / SBSE6.0-50

A

1

Inverter

B

1

Mounting bracket

C

1

Left side cover

D

1

Right side cover

E

1

Allen key 1/4

F

1

2-pole connector for the signal cable of the backup operation

G

1

4-pole connector for connecting the energy meter per RS485

H

1

3-pole connector for connecting the multifunctional relay

I

3

Terminal blocks for connection of PV modules

J

3

M32x1.5 cable gland with four-hole cable support sleeve with 2 differently sized enclosure openings for the communication connections

K

2

M32x1.5 cable gland with four-hole cable support sleeve with 4 equally sized enclosure openings for the DC connection

L

1

M32x1.5 cable gland with seal insert for connection to the utility grid

M

1

Cable gland M25x1.5 with two-hole cable support sleeve for connection of battery power cables

N

1

Cable gland M20x1.5 with sealing plug for connection of backup power cable

O

1

Ferrite

P

1

Cable tie

Q

1

Screw and washer assembly M5x12 for additional protective grounding

R

1

Documentation package consists of:

• Safety information booklet

• Quick reference guide poster with illustrated instructions for initial installation and commissioning

• Sheet with a password label contains the following information:

  • PIC (Product Identification Code) identification key for registering the system in Sunny Portal

  • RID (Registration Identifier) registration ID for registering the system in Sunny Portal

  • Wi-Fi password WPA2-PSK (WiFi Protected Access 2 - Preshared Key) for direct connection to the product via Wi-Fi

  • Device Key (DEV KEY) for resetting the administrator password
