Requirements for the profile rails

  • The profile rails must be designed for the load and orientation of the inverters in the PV system. The profile rails might need to be reinforced.

  • The spacing of the profile rails must be designed for the spacing of the holes in the bracket parts for the mounting bracket.

13831051020

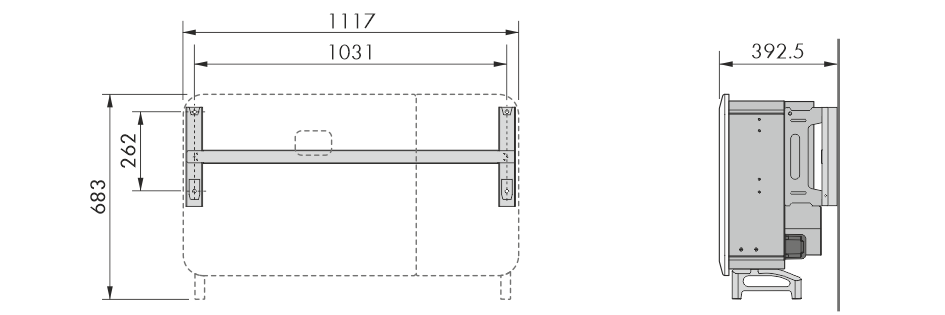

Dimensions of the mounting bracket (dimensions in mm)

    Mounting to Profile Rails
    Mounting the Product to Profile Rails
