Connecting Signal Source to Digital Input

Qualified person

It is possible to connect a digital signal source (e.g. ripple control receiver or remote terminal unit) to the digital input of the product. This must be connected if it is prescribed by the grid operator.

Additionally required material (not included in the scope of delivery):

  • Connection cable

  • Bootlace ferrules (only for multi-core stranded wire, usable length of the ferrule at least 12 mm)

Requirements for connection cable:

  • Cable with shielding: Yes

  • External diameter: 5.3 mm to 7 mm

  • UV-resistant for outdoor use.

Requirements:

  • The signal source must be technically suitable for connection to the digital inputs ( > Technical Data).

  • The connected digital signal source has a safe separation to the grid potential.

Circuitry overview:

9362689548

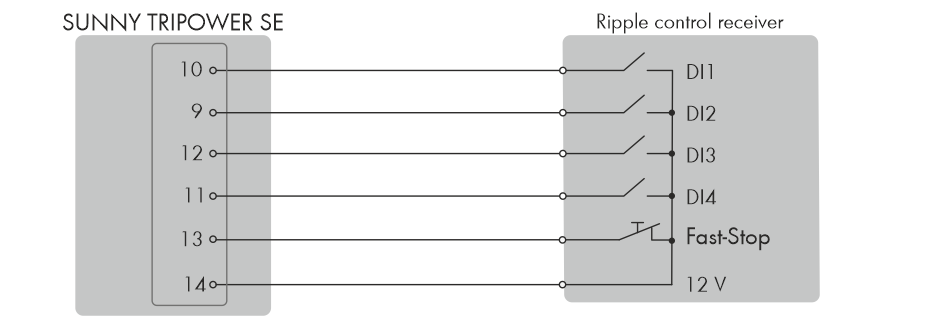

Connection of a Ripple Control Receiver

Procedure:

  1. Connect the connection cable to the digital signal source (see the manual from manufacturer).
  2. Remove 1 sealing plug from the cable support sleeve.
    3. 9362681996
  3. Lead the connection cable into the threaded sleeve.
  4. Dismantle the connection cable 40 mm to 50 mm.
  5. Strip the insulation on the insulated conductors each by 12 mm.
  6. When using a multi-core stranded wire, provide the conductors with bootlace ferrules.
  7. Connect the connection cable to the terminal block of the COM connector according to the assignment of the terminal block.
