Circuitry Overview

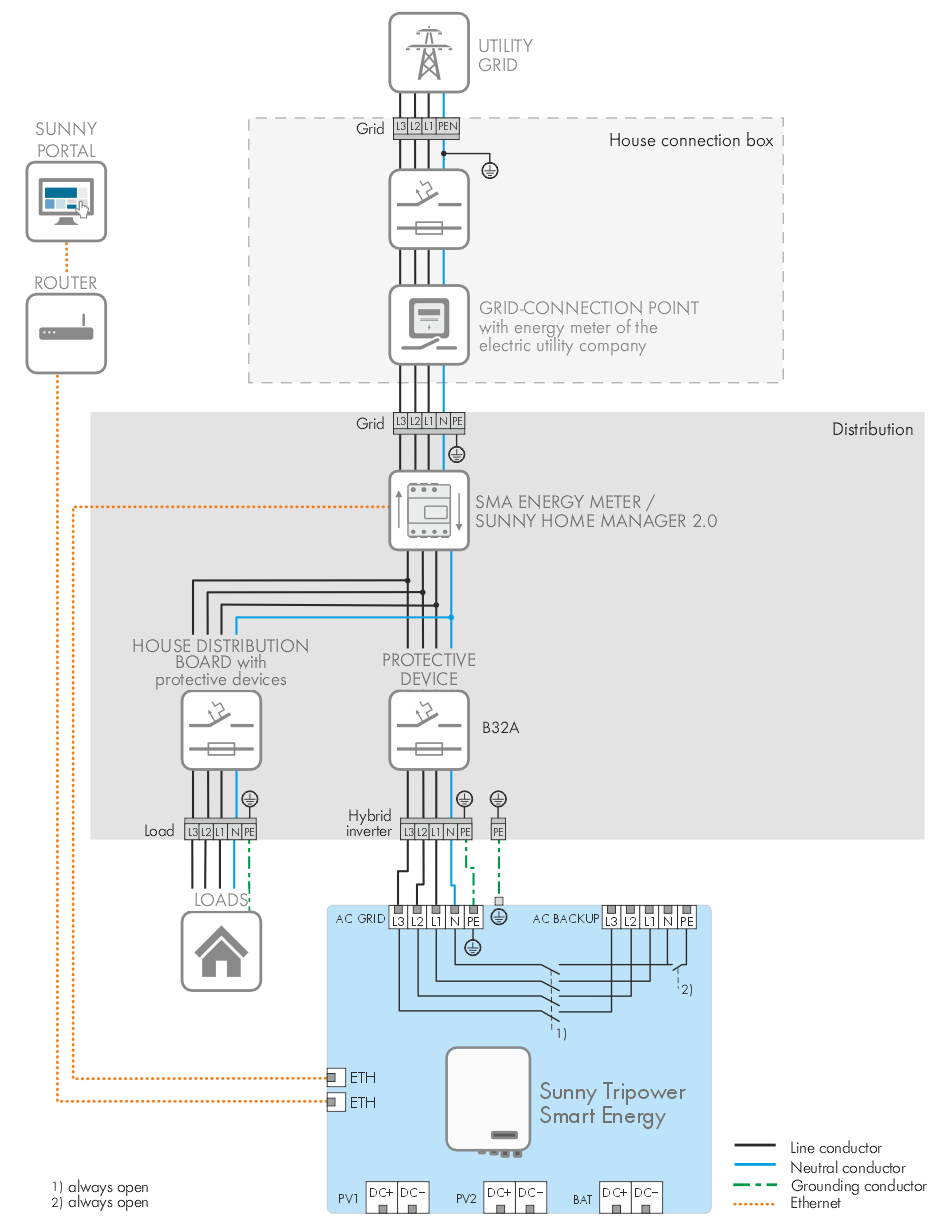

Circuitry overview without battery-backup system (example)

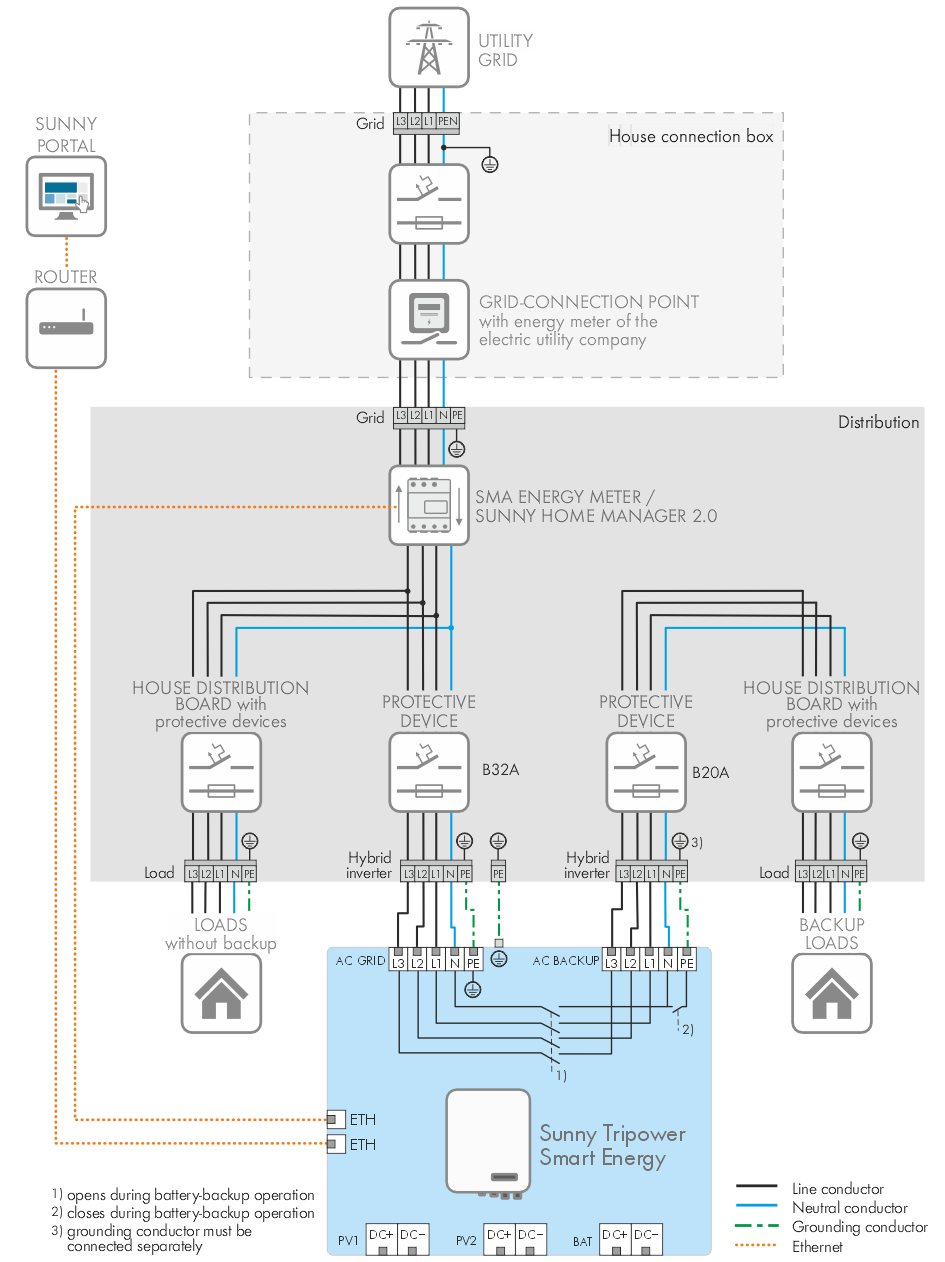

Circuitry overview with battery-backup system (example)

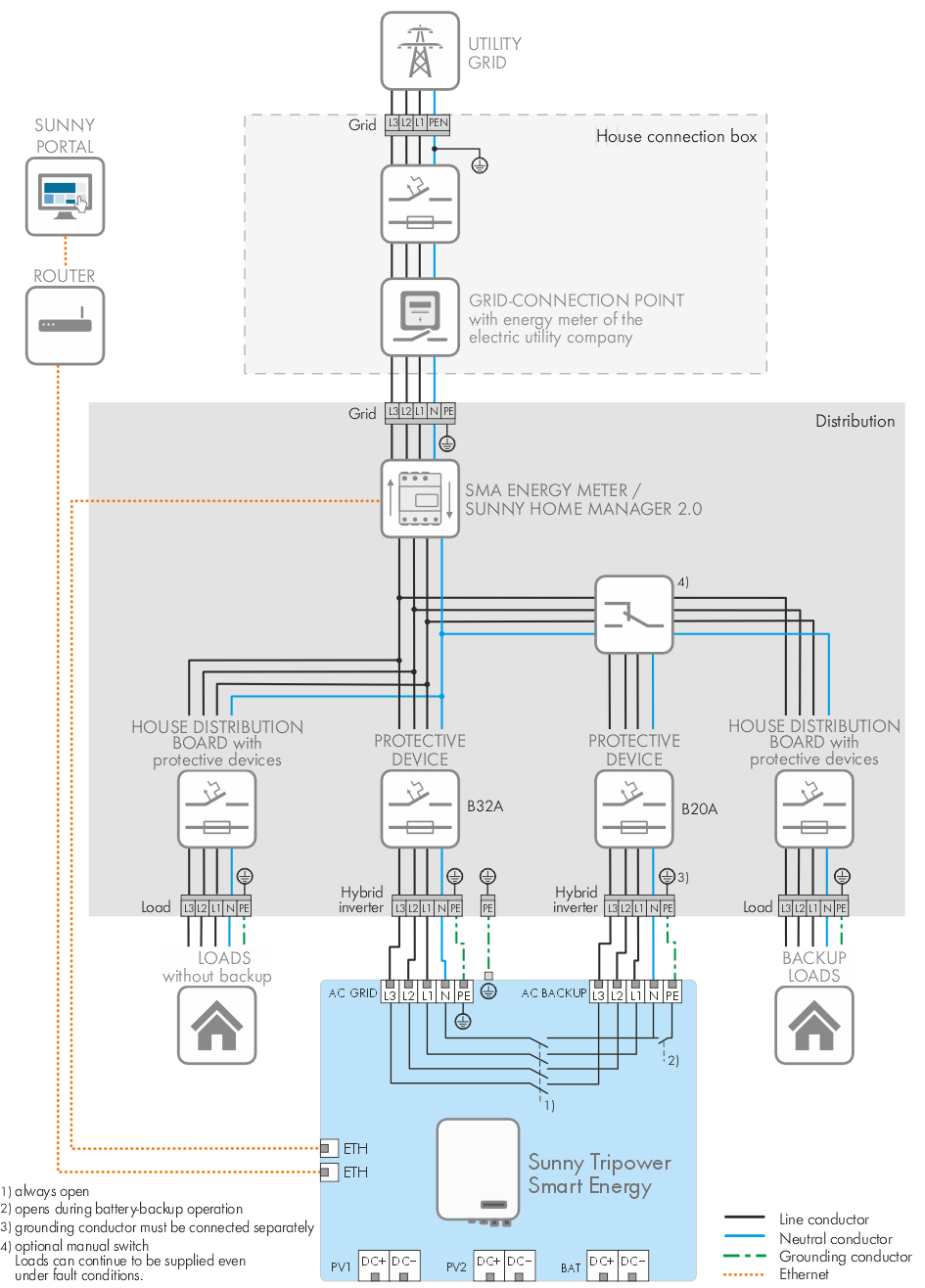

Circuitry overview with battery-backup system and optional transfer switch (example)
