Commissioning the Product

Qualified person

Requirements:

  • The AC miniature circuit breaker must be correctly rated and mounted.

  • The product must be correctly mounted.

  • All cables must be correctly connected.

Procedure:

  1. Close unused enclosure opening with filler plugs.
  2. Ensure that all cable glands have seal inserts and that the seal inserts have not moved.
    3. 8639301644

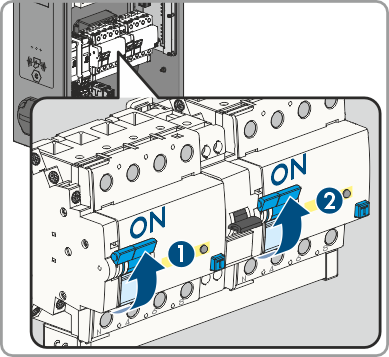

  3. Switch on the two residual-current devices.
  4. Switch on the internal miniature circuit breaker for energy self-sufficiency and the external AC miniature circuit breakers.
    5. 8639314828
  5. Wait until the product is ready for operation. The procedure takes approx. 5 minutes.
  6. The LED is glowing green.
  7. Secure the safety cover with the 2 nuts.
    8. 8639315212
  8. Test the charging station in accordance with IEC 61851 and complete the test report. For an example of a test report, see the product page at www.SMA-Solar.com.
    9. 8639301260
  9. Close the enclosure cover.
  10. Ensure that the charging station is charging properly.
