Using the Multifunction Relay as a Fault Indicator Contact

You can use the multifunction relay as a fault indicator contact and have an error or smooth operation of the inverter displayed or signaled via a suitable display device. You can connect multiple inverters to a single fault indicator or operation indicator if necessary.

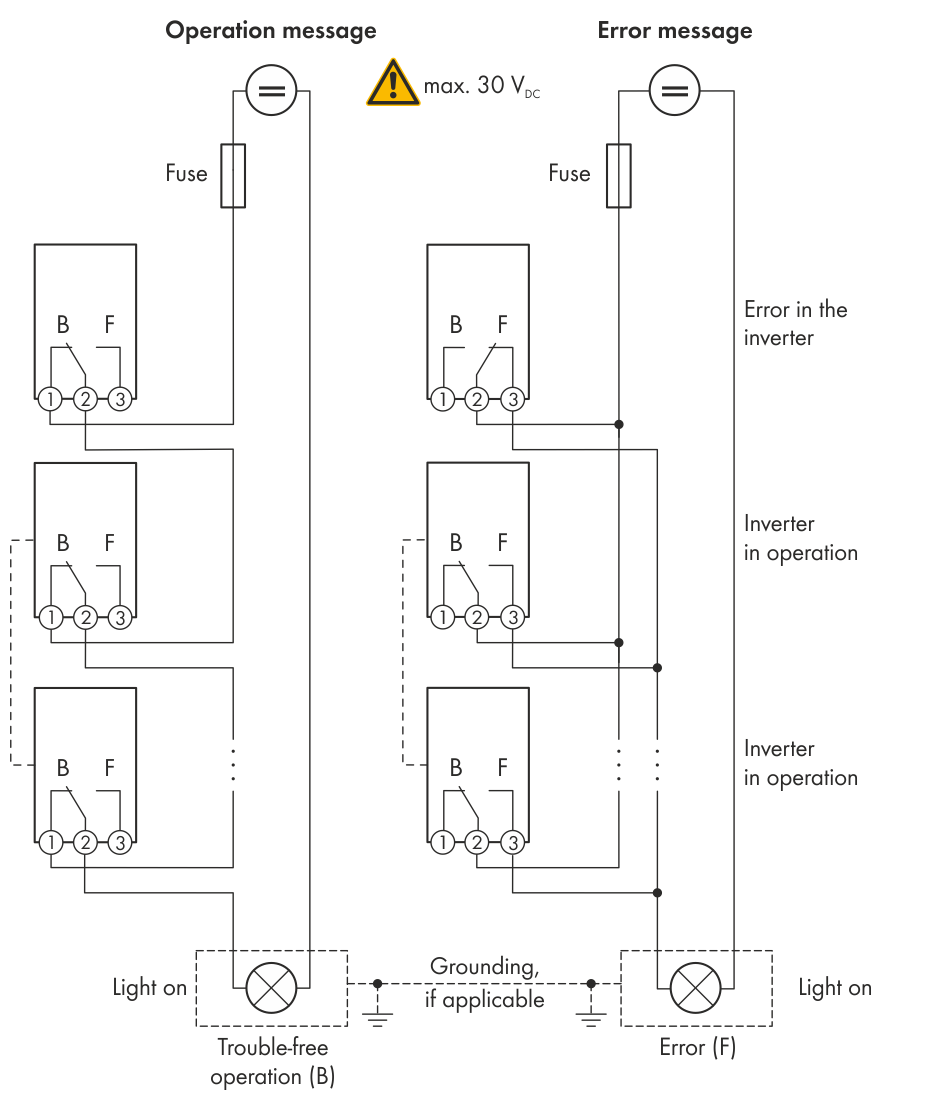

Circuit diagram with multiple inverters for connection to an operation indicator and circuit diagram for connection to a fault indicator (example)
