Mount the product.
Qualified person
Additionally required mounting material (not included in the scope of delivery):
For transport with a hoist: 2 eye bolts (M8)
For mounting:
2 screws that are suitable for the support surface and the weight of the inverter
2 washers suitable for the screws
To protect the product against theft: 1 padlock suitable for outdoor use. The padlock shackle should have a 7.5 mm (0.375 in) diameter.
CAUTION
Risk of injury due to weight of product
Injuries may result if the product is lifted incorrectly or dropped while being transported or mounted.
- Transport and lift the product carefully. Take the weight of the product into account.
- Use the carrying handles or hoist when transporting the product. To attach the hoist system, eye bolts must be screwed into the threads provided, which are located on the right and left of the product's mounting lugs.
- Wear suitable personal protective equipment for all work on the product.
Procedure:
- Align the mounting bracket horizontally and mark the position of the drill holes.
- Set the mounting bracket aside and drill the marked holes.

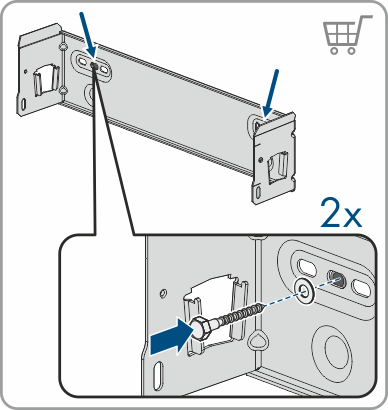

- Tighten the mounting bracket horizontally with screws and washers.

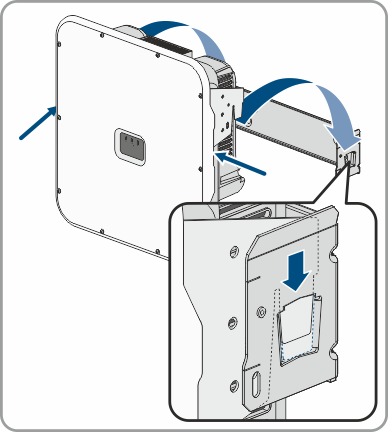

- Hook the inverter into the mounting bracket.

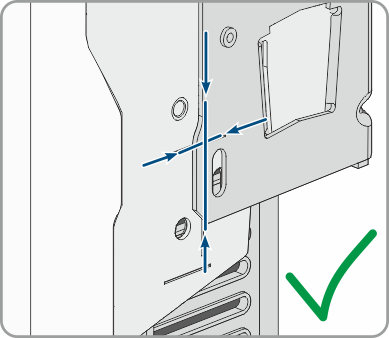

- Ensure that the inverter is securely in place. The inverter is correctly hooked in when the openings in the mounting bracket and the mounting tab line up.

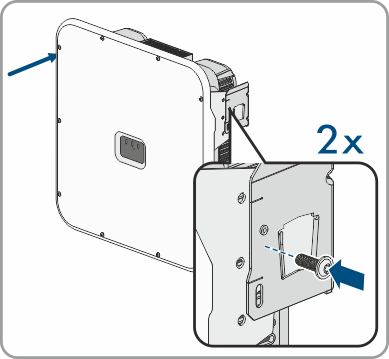

- Secure the inverter to the mounting bracket on both sides with an M5x14 screw. Insert screws into the screw holes on the left and right tab of the mounting bracket and tighten them (TX25, torque: 1.5 Nm (13 in-lb)).
- To secure the inverter against theft, guide the padlock shackle through the metal tab of the mounting bracket and through the mounting tab of the inverter before closing it.
- Keep the key of the padlock or the number combination for opening it in a safe place.
