Mount the DC terminal cover (optional)
Qualified person
Requirements:
The DC terminal cover must be available as an accessory .
Procedure:
- Drill or punch holes required for connecting the conduits at the pre-notched spots.

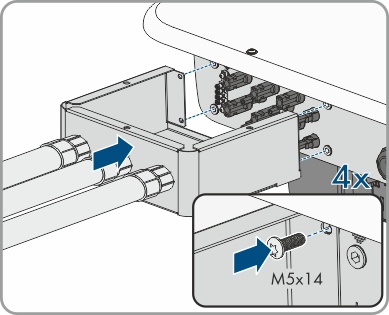

- Mount the enclosure on the bottom of the inverter using the M5x14 screws from the scope of delivery of the accessory kit (TX25, torque: 4 Nm (35 in-lb)).
- Mount the conduits for the DC connection to the DC terminal cover.
