View from Below

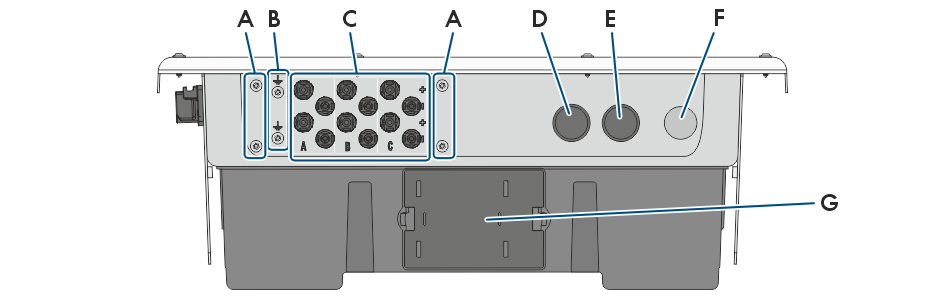

Bottom view of product
Position | Designation |
|---|---|
A | Screw-on points for the DC-TERM-COVER (available as accessory) |
B | Screw-on points for the equipment grounding bar |
C | Positive and negative connectors for DC connection |
D | Enclosure opening for the network cables and signal cables (for conduits of trade size 34.5 mm (1 in) or smaller with suitable reducer bushing) |
E | Enclosure opening for connecting to the digital inputs and to the multifunction relay (for conduits of trade size 34.5 mm (1 in) or smaller with suitable reducer bushing) |
F | Enclosure opening for connecting the utility grid (for conduits of trade size 34.5 mm (1 in) or smaller with suitable reducer bushing) |
G | Fan drawer |
