Connecting signal source to X12/X13
Qualified person
Requirements:
The technical requirements of the multifunction relay must be met ( > Technical Data).
Procedure:
- Connect the connection cable to the digital signal source (see the manual from manufacturer).

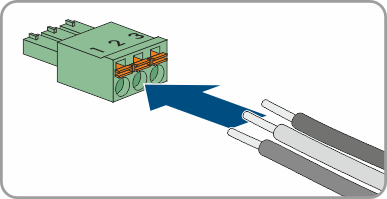

- Connect the connection cable to the supplied 3-pole connector. Ensure that the conductors are plugged completely into the terminal points up to their insulation.
- Plug the 5-pole connector into the sockets X12 or X13 on the product. Observe the pin assignment.
- Ensure that the connector is securely in place.
- Ensure that all conductors are correctly connected.
- Ensure that the conductors sit securely in the terminal points.
