Decommissioning the Product

Qualified person

WARNING

Danger to life due to electric shock

Lethal voltages are present at the connection point of the utility grid.

  1. Disconnect the connection point from the utility grid using the separator (e.g. miniature circuit breaker).

Procedure:

  1. Pull the two-pole power supply unit plug out of the jack X1 on the Data Manager.
  2. Unlock all RJ45 connectors of the network cable and pull out of the network ports X14, X15 and X16 of the Data Manager.
  3. Pull all connectors out of the sockets X3 to X13 on the Data Manager.
    4. 14131035916

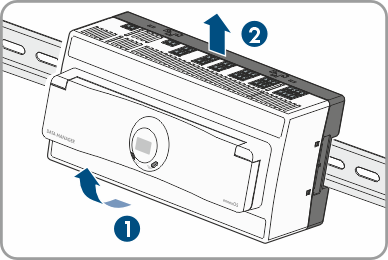

  4. If mounted on a DIN rail: to detach the Data Manager from the DIN rail, unlock both lower base latches using a suitable tool. Tilt the lower edge of the Data Manager forwards and lift it up and off the DIN rail.
  5. If mounted on a wall: remove the screws from the base latches and remove the Data Manager.
