Overview of the Connection Area

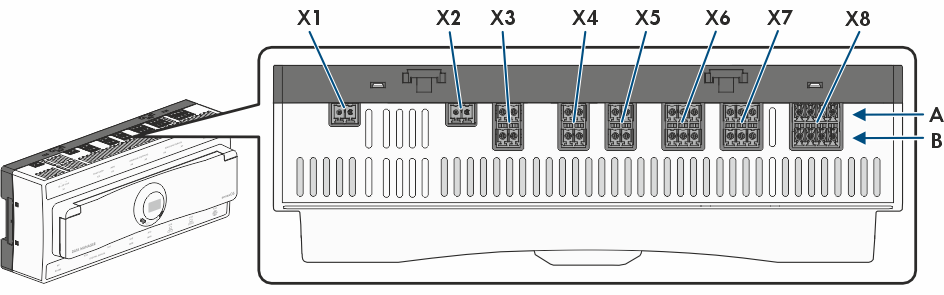

Overview of the upper connection area

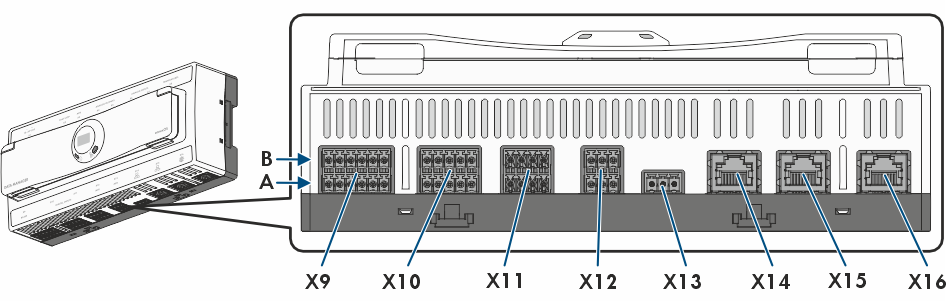

Overview of the lower connection area
Connection | Explanation |
|---|---|
X1 | Jack for connecting the voltage supply |
X2 | Socket for connecting a switch for the fast stop |
X3 | Socket for the connection to the multifunction relay |
X4 | Socket for the connection to analog output signals |
X5 | Socket for the connection to analog output signals |
X6 | Socket for connecting analog input signals |
X7 | Socket for connecting analog input signals |
X8 | Socket for connecting the temperature sensors |
X9 | Jack for connecting the RS485 devices |
X10 | Socket for connecting potential-free switching contacts |
X11 | Socket for connecting potential-free switching contacts |
X12 | Socket for the connection to the multifunction relay |
X13 | Socket for the connection to the multifunction relay |
X14 | Network port for connecting to the SMA Speedwire network |
X15 | Network port for connecting to the SMA Speedwire network |
X16 | Network port for connecting to the Internet |
