Single-Cluster System (Three-Phase)

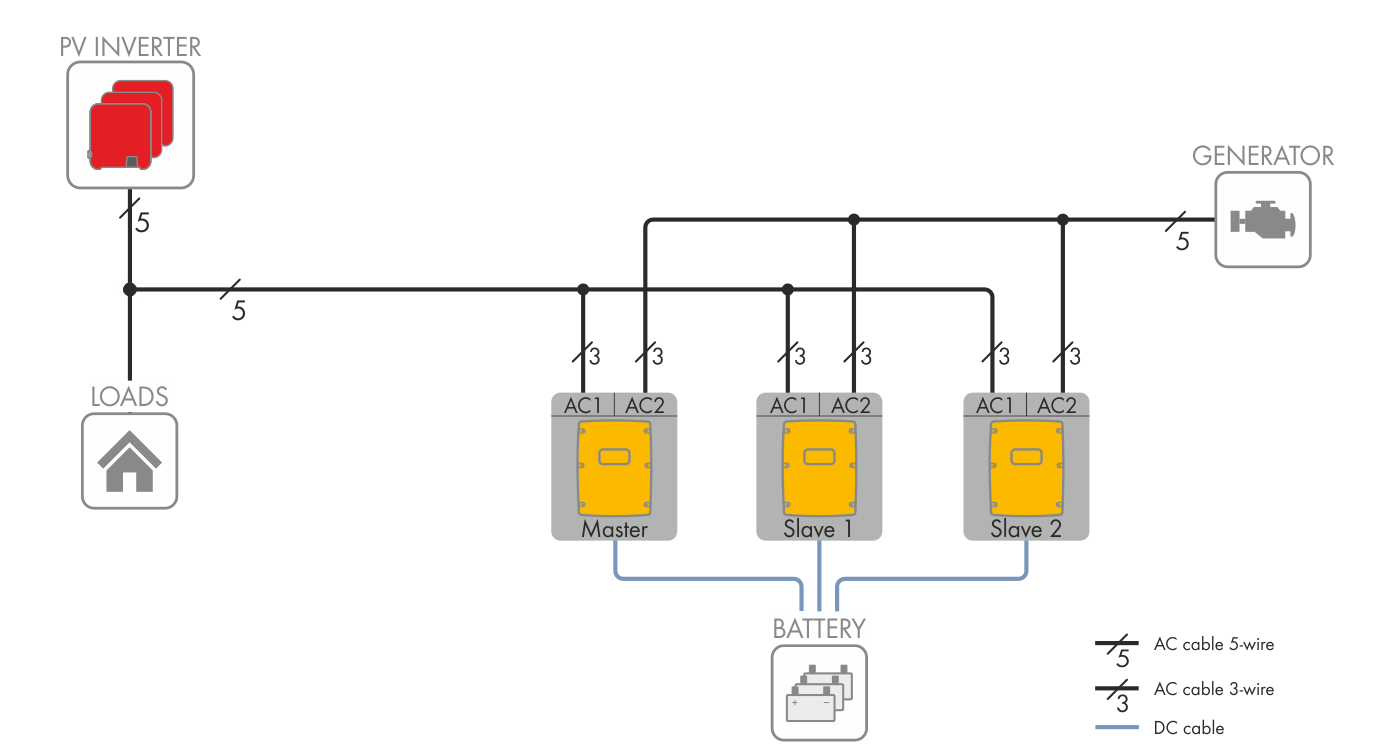

1576154764

Principle of a three-phase single-cluster system

In a three-phase single-cluster system, up to 3 Sunny Island inverters are connected to one battery forming a cluster. On the AC side, the Sunny Island inverters are connected to 3 different line conductors. All device types must be the same ( > Further Information on Clusters).
