Unpacking the product

WARNING

Danger to life due to choking on packaging material

Careless handling of packaging material can lead to death by suffocation.

  1. Remove packaging material carefully from the product.

CAUTION

Risk of injury due to weight of product

Injuries may result if the product is lifted incorrectly or dropped while being transported or mounted.

  1. Always have several persons transport and mount the product. The number of persons depends on the locally applicable standards and directives.
  2. Lift the product with a lifting aid.
  3. Wear suitable personal protective equipment of the corresponding hazard risk category for all work. The hazard risk categories of the various areas of the product are different. For further information, contact us.

Additionally required equipment:

  • Toolbox
  • Lifting aids, e.g. crane or forklift

Procedure:

  1. Enter the serial number of the spare-part set from the packaging in the report on installation of noise reduction kits ( > Register the serial numbers of the inverters and components).

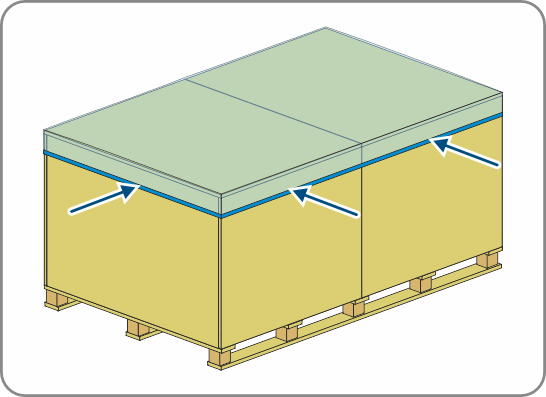

    2. 17134200588
  2. Remove straps and plastic film from the cover.

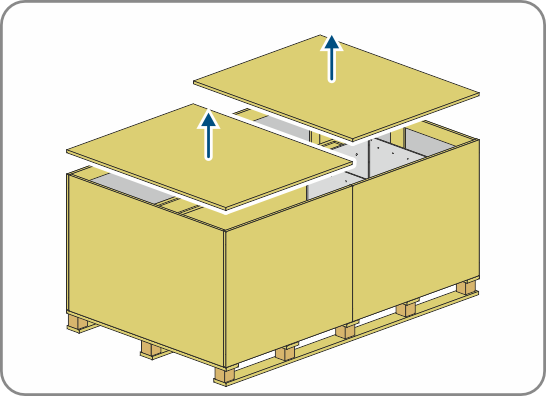

    3. 17134200716
  3. Remove the cover.

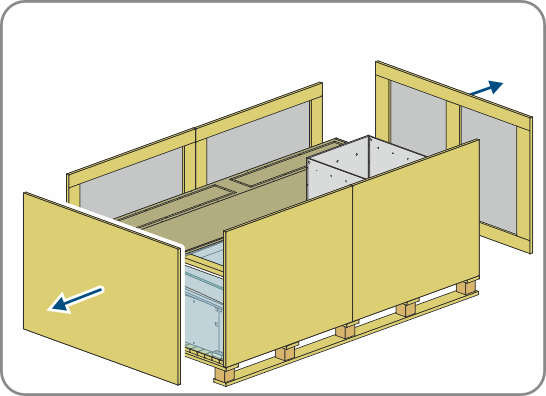

    4. 17134200844
  4. Remove covers from the short sides.

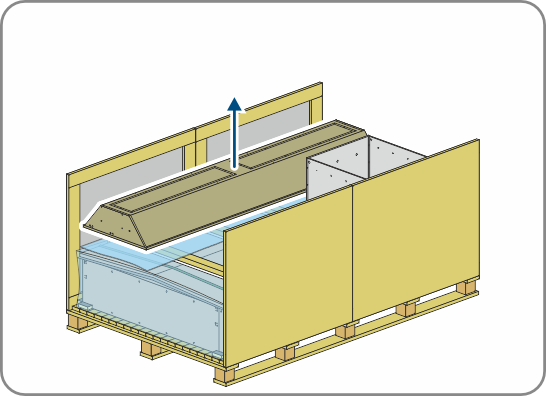

    5. 17134200972
  5. Remove air duct. Have 2 people and a suitable lifting aid available for this.

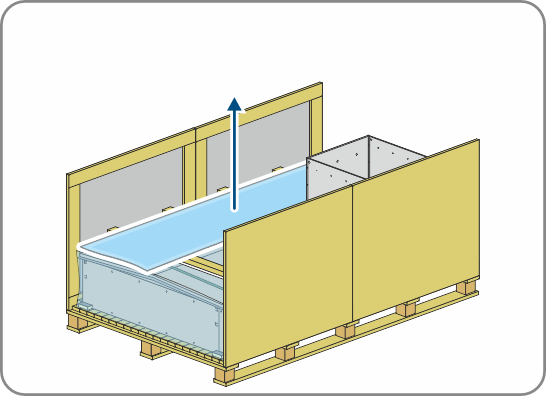

    6. 17134201100
  6. Remove corrosion protection film.

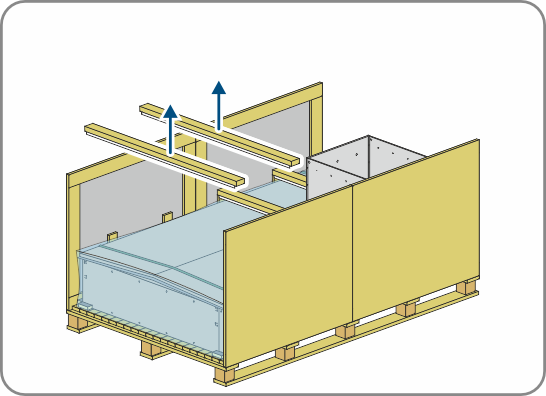

    7. 17134201228
  7. Remove front wooden bracing.

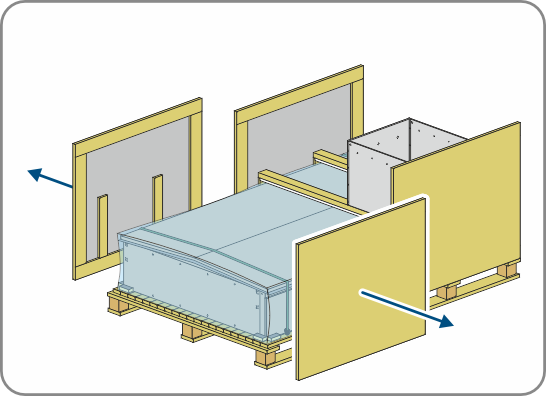

    8. 17189171852
  8. Remove front covers from the long sides.

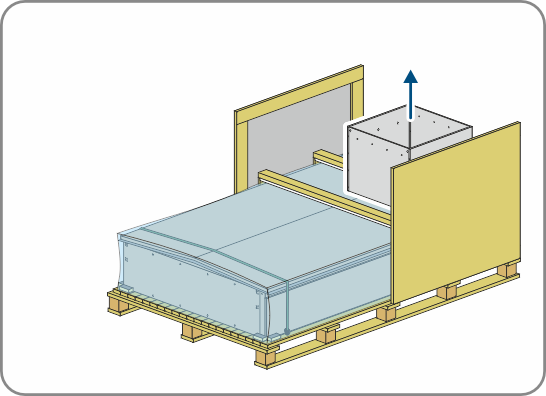

    9. 17134201356
  9. Remove the sound absorber for the air outlet. Have 2 people available for this.

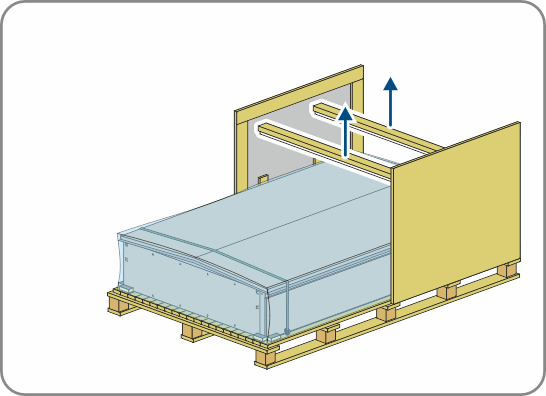

    10. 17134201484
  10. Remove rear wooden bracing.

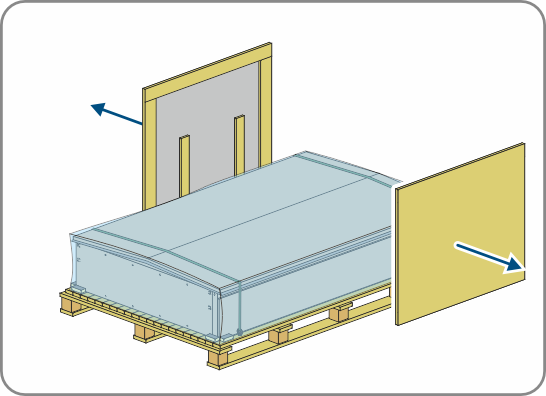

    11. 17134201612
  11. Remove rear covers from the long sides.

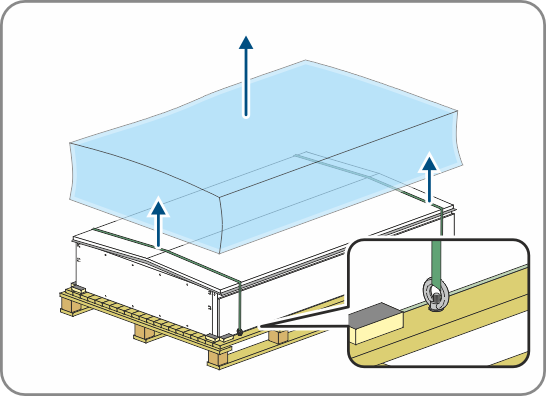

    12. 17134201740
  12. Remove tie-down straps and plastic film.

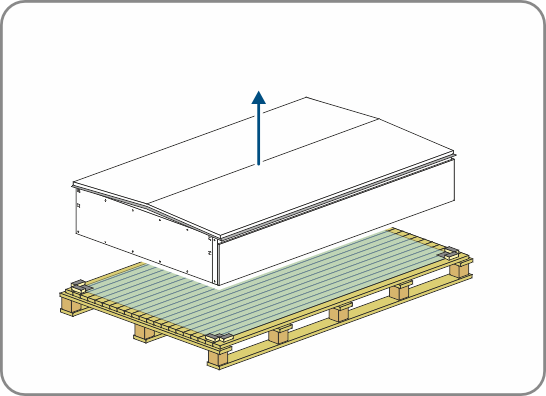

    13. 17134201868
  13. Remove the sound absorber for the air outlet using a suitable lifting aid.
  14. Dispose of all packaging materials and the Euro pallet properly.
