Remove service covers of the air duct
Required mounting material (included in the scope of delivery):
1 air duct
Procedure:
- Unpack the air duct from the foil.

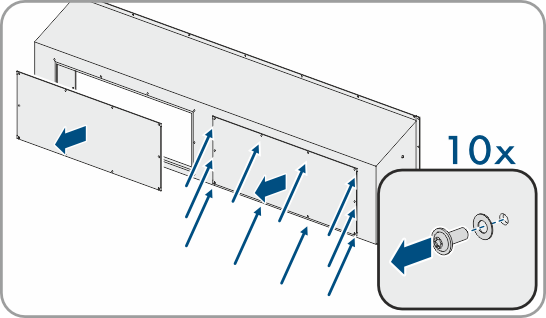

- Remove screws and washers from the service covers and store them for the installation (TX30).
- Remove the service cover from the air duct and keep for the installation.
- Mount the air duct to the sound absorber ( > Mounting the air duct to the sound absorber).
