Open the cover of the air inlet
Requirements:
The installation work on the product has been completed.
The system will be commissioned within the next week.
Procedure:

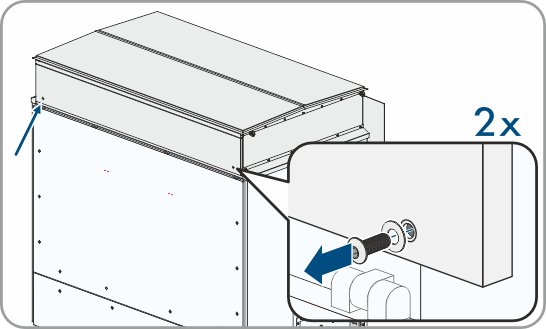

- On the DC side of the inverter remove the 2 screws on the cover of the air inlet and keep for later use.
- Lift the air inlet and fold up the support angle.

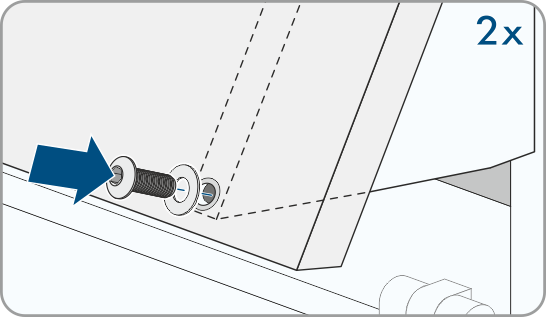

- Mount the two screws on the air inlet cover.
