View from Below

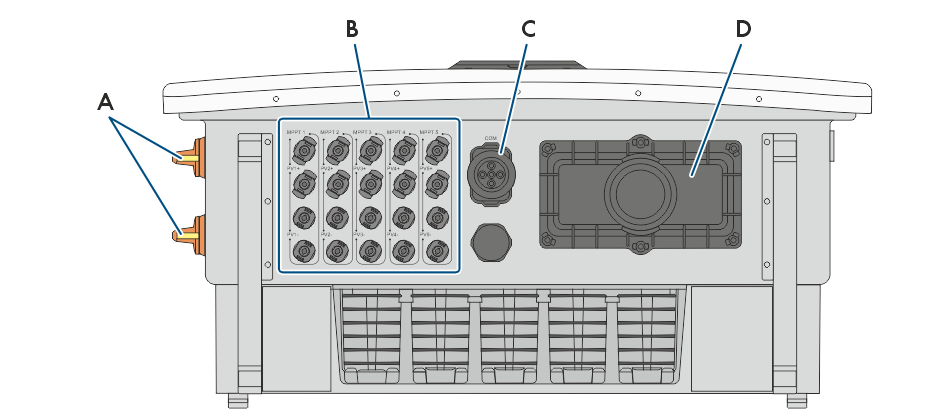

Enclosure openings at the bottom of the inverter
Position | Designation |
|---|---|
A | DC load-break switch |
B | Positive and negative connectors for DC connection |
C | Cable gland for connecting the communication |
D | AC connection area |
Enclosure openings at the bottom of the inverter
Position | Designation |
|---|---|
A | DC load-break switch |
B | Positive and negative connectors for DC connection |
C | Cable gland for connecting the communication |
D | AC connection area |
