Requirements for Mounting


Requirements for the Mounting Location:

WARNING

Danger to life due to fire or explosion

Despite careful construction, electrical devices can cause fires. This can result in death or serious injury.

  1. Do not mount the product in areas containing highly flammable materials or gases.
  2. Do not mount the product in potentially explosive atmospheres.
  • A solid support surface must be available (e.g., concrete or masonry). When mounted on drywall or similar materials, the product emits audible vibrations during operation which could be perceived as annoying.

  • The mounting location must be inaccessible to children.

  • The mounting location must be suitable for the weight and dimensions of the product Technical Data).

  • The mounting location must not be exposed to direct solar irradiation. If the product is exposed to direct solar irradiation, the exterior plastic parts might age prematurely and overheating might occur. When becoming too hot, the product reduces its power output to avoid overheating.

  • The mounting location should be freely and safely accessible at all times without the need for any auxiliary equipment (such as scaffolding or lifting platforms). Non-fulfillment of these criteria may restrict servicing.

  • The DC load-break switch of the product must always be freely accessible.

  • All ambient conditions must be met Technical Data).

  • To ensure optimum operation, the ambient temperature should be between -25°C and +40°C.

Permitted and prohibited mounting positions:

  • The product may only be mounted in a permitted position. This will ensure that no moisture can penetrate the product.

  • The product should be mounted such that the LED signals can be read off without difficulty.

436392588

Permitted and prohibited mounting positions

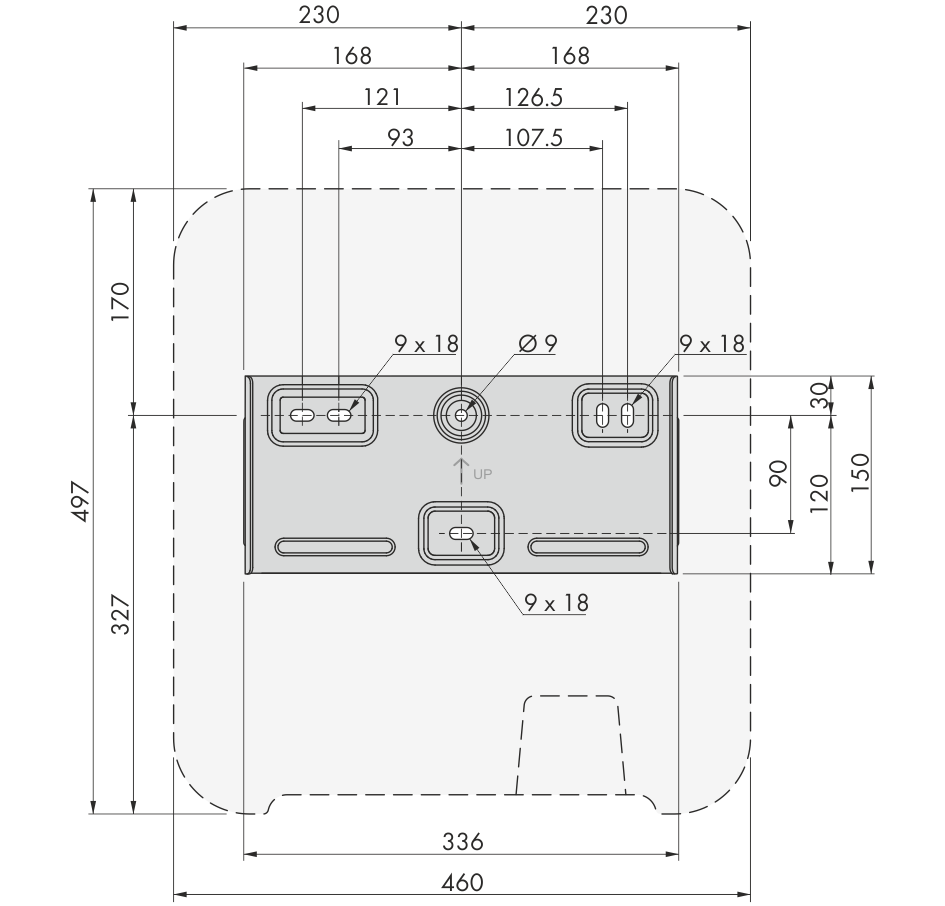

Dimensions for mounting:

4285119756

Position of the anchoring points(Dimensions in mm)

Recommended clearances:

If you maintain the recommended clearances, adequate heat dissipation will be ensured. Thus, you will prevent power reduction due to excessive temperature.

  • Maintain the recommended clearances to walls as well as to other inverters or objects.

  • If multiple inverters are mounted in areas with high ambient temperatures, increase the clearances between the inverters and ensure sufficient fresh-air supply.

498136972

Recommended clearances(Dimensions in mm)
