Sunny Tripower Storage X with SMA DATA MANAGER M

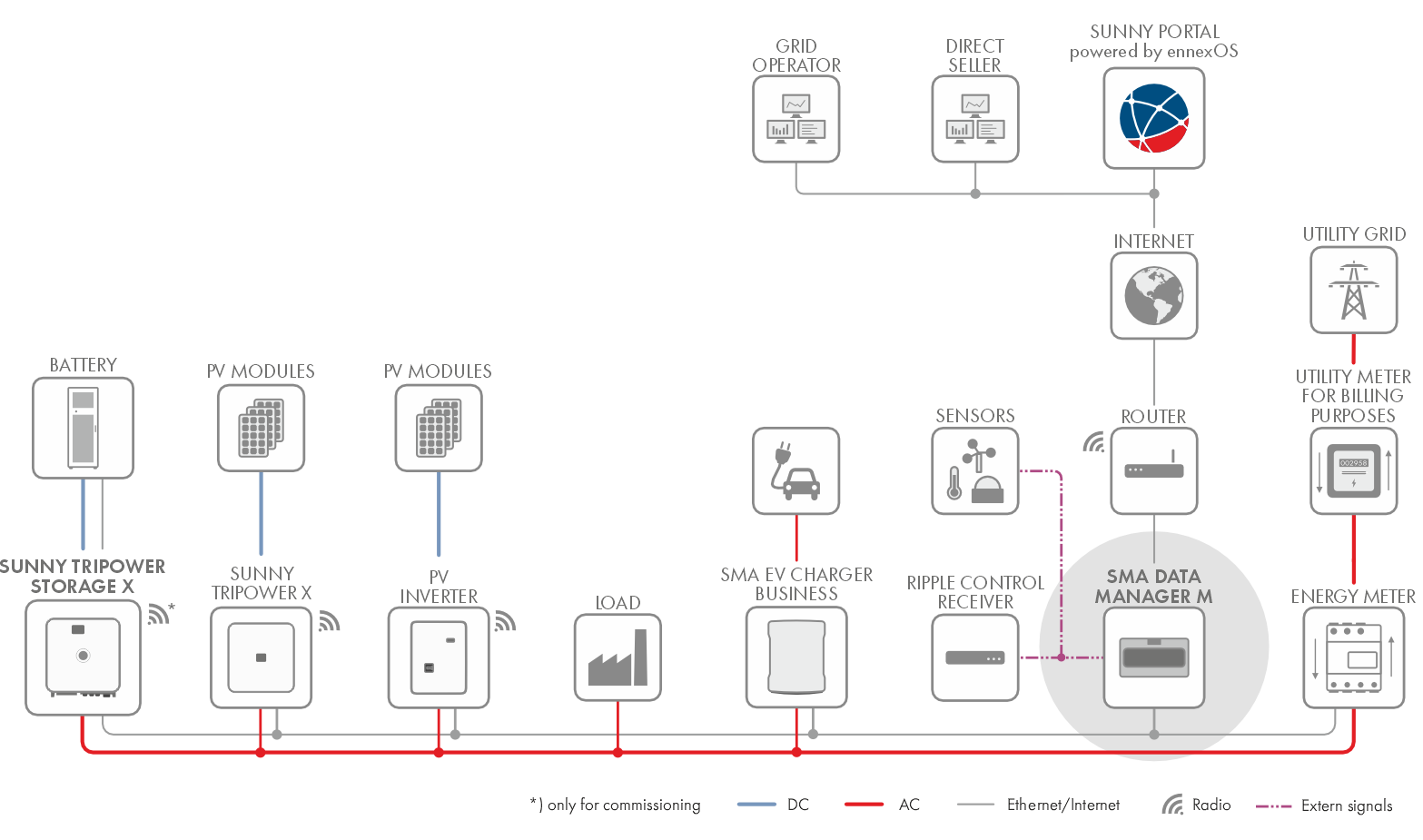

In preparation: Sunny Tripower Storage X with SMA DATA MANAGER M as System Manager (example)
Sunny Tripower Storage X as System Manager
Product Description
Table of Contents
toggle menu
Information on this Document
Validity
Target Group
Content and Structure of this Document
Levels of Warning Messages
Symbols in the Document
Typographical Elements in the Document
Designations in the Document
Additional Information
Safety
Intended Use
IMPORTANT SAFETY INSTRUCTIONS
Scope of delivery
Additionally Required Materials and Equipment
Product Overview
System overview
Sunny Tripower Storage X as System Manager
Sunny Tripower Storage X with SMA DATA MANAGER M
Product Description
Interfaces and Functions
Sunny Tripower Storage as System Manager
User Interface
SMA Speedwire
Wi-Fi connection to SMA 360° app and SMA Energy app
Device Key (DEV KEY)
Modbus
Grid Management Services
Communication with the SMA Data Manager M/L
Integrated Plant Control
Increased self-consumption
Peak load shaving
LED Signals
Mounting and Preparing the Connection
Requirements for Mounting
Requirements for the mounting location of the inverter
Permitted and prohibited mounting positions
Dimensions for mounting
Recommended clearances for mounting
Overview of Connecting Plate
Center of gravity
Preparing for mounting and connection
Mounting the Inverter
Electrical Connection
Requirements for the electrical connection
Residual-current monitoring unit (RCMU)
Overvoltage category
AC cable requirements
Network cable requirements
Battery data cable requirements
Laying plan for network and battery data cables
External I/O system
DC cable requirements
Overview of the Connection Area
DC connection overview
Electrical connection procedure
Connecting the AC Cable
Connecting the Network Cables
Connecting the Data Cable of the Battery
Connecting the DC Cables
Commissioning
Commissioning procedure with ennexOS
Commissioning the Inverter
Changing the Network Configuration
Configuring the Inverter
Registration in Sunny Portal
Profiles for data communication
Register as a new user in Sunny Portal
Log in to Sunny Portal as an existing user
Create new PV system
Add product to an existing system
Operation
Establishing a connection to the user interface
Establishing a Direct Connection via Ethernet
Establishing a Connection via Ethernet in the local network
Connection in the local network
Access addresses for the product in the local network
Ports for data communication in the local network
Establishing a Connection via Ethernet in the local network
Establishing a Connection via WLAN in the Local Network
Direct connection via Wi-Fi
Connection options for Wi-Fi direct connection
Access information for direct Wi-Fi connection
Establishing a direct Wi-Fi connection with the 360° app
Establishing a direct Wi-Fi connection with WPS
Establishing direct Wi-Fi connection with Wi-Fi network search
Design of the User Interface
Access rights to the user interface
Changing the Password
Country standard
Energy management
Home page of the energy management
Overview of used energy management profiles
Parameter description for peak load shaving
Creating a new energy management profile
Deactivating the energy management
Activating the energy management
Changing an energy management profile
Configuring the battery
Modbus function
Configuring Modbus
Updating Firmware with Update File via the User Interface
Activating Speedwire encryption of the system communication
Backup file
Function and content of the backup file
Creating a Backup File
Uploading the backup file
Resetting the product to default setting
Deleting the Admin Account
Stopping the inverter
Starting the inverter
Disconnecting the Inverter from Voltage Sources
Cleaning
Troubleshooting
Event messages
Event 101
Event 102
Event 103
Event 105
Event 202
Event 203
Event 206
Event 301
Event 401
Event 404
Event 501
Event 601
Event 701
Event 1302
Event 3302
Event 3303
Event 3401
Event 3501
Event 3523
Event 3601
Event 3701
Event 3701
Event 3901
Event 3902
Event 6001-6468
Event 6501
Event 6502
Event 6509
Event 6511
Event 6512
Event 6602
Event 6603
Event 6802
Event 6804
Event 6805
Event 7001
Event 7702
Event 7703
Event 7727
Event 7728
Event 7801
Event 8003
Event 8104
Event 8708
Event 8709
Event 8710
Event 9002
Event 9003
Event 9007
Event 9101
Event 9102
Event 9107
Event 9303
Event 9307
Event 9308
Event 9311
Event 9312
Event 9313
Event 9314
Event 9315
Event 9316
Event 9350
Event 9351
Event 9352
Event 9353
Event 9369
Event 9392
Event 9393
Event 9394
Event 9395
Event 10816
Event 10817
Event 10818
Event 10819
Replacing the Surge Arrester
Cleaning the fans of the inverter
Checking the fans of the inverter
Decommissioning
Disconnect the terminals on the inverter
Disassembling the Inverter
Disposal
Replace the inverter with a replacement device
Technical Data
General Data
DC Input
AC Output
Digital input
Efficiency
Protective Devices
Climatic Conditions
Torques
System Limits
Accessories
EU Declaration of Conformity
UK Declaration of Conformity
