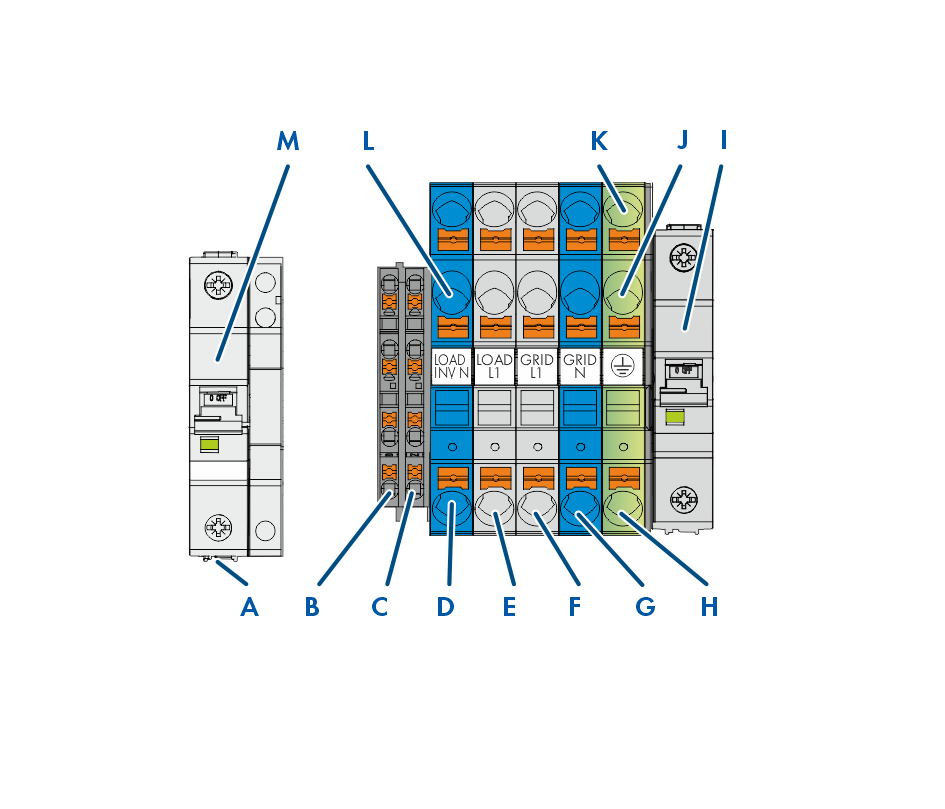

Overview of the Connection Area

A

Connection for the AC cable (L1) for the connection on the inverter

B

Connection for the AC cable SPS IN

C

Connection for the AC cable SPS OUT

D, E

Connection for the AC cable for backup loads

F, G, H

Connection for the AC cable for the utility grid

I

6 A pre-fusing of the monitoring relay

J

Connection for the AC cable (PE) for backup loads

K

Connection for the AC cable (PE) for the connection on the inverter

L

Connection for the AC cable (N) for the connection on the inverter

M

32 A miniature circuit breaker to protect the cable to the inverter
