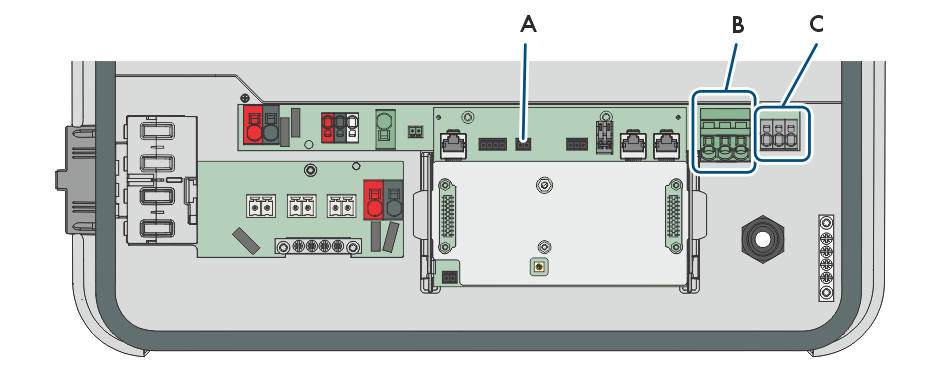

Connection Area of the Inverter
Position | Designation |
|---|---|
A | SPS slot for connection of the SPS IN cable |
B | AC terminal block for connection of the AC INV cable |
C | SPS terminal block for connection of the SPS OUT cable |
Position | Designation |
|---|---|
A | SPS slot for connection of the SPS IN cable |
B | AC terminal block for connection of the AC INV cable |
C | SPS terminal block for connection of the SPS OUT cable |
