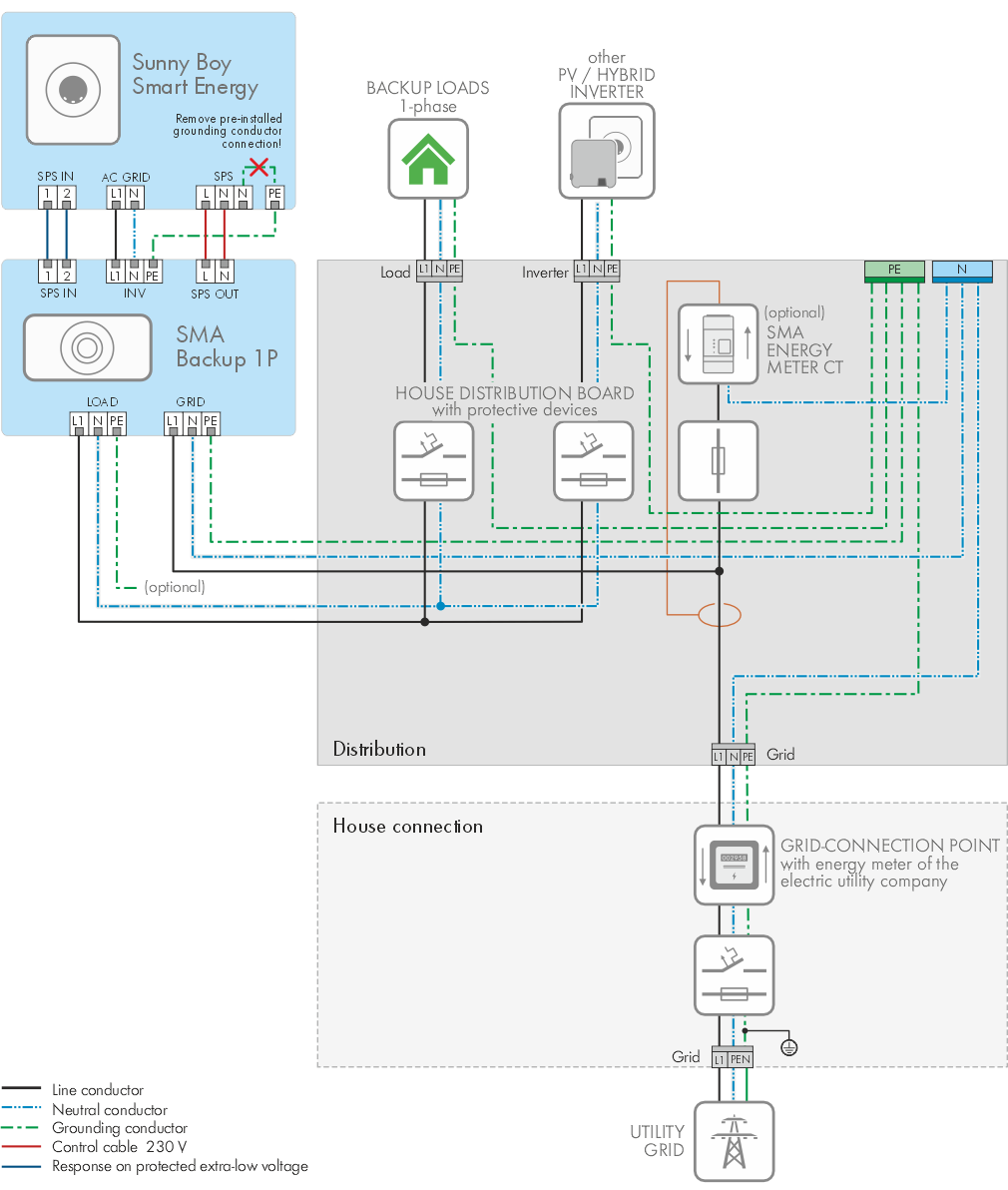

Circuitry overview for battery backup (single-phase - TN)
Connection of Battery-Backup Systems with Sunny Boy Smart Energy
Circuitry overview for battery backup (single-phase - TT)
Table of Contents
toggle menu
SMA Home Energy Solution with Battery-Backup Function
Role of a Battery-Backup System
Design and Function of a Battery-Backup System
Bridging Time and Self-Consumption Quota
Operating Conditions of a Battery-Backup Grid
Certifications and Licenses
Utility Grid
Miniature Circuit Breaker in the Household Distribution
Switching Times for Loads
PV Inverters for Battery-Backup Systems with Sunny Island
Suitable PV Inverters
Maximum AC Power of the PV Inverters
Frequency-Dependent Control of Active Power at the PV Inverter
Limitation of Active Power Feed-In to 0% or 0 W
Batteries
Recommendations for Battery Capacity
Supported Batteries
Battery use
Battery Use by the Sunny Island
Battery Use by the Sunny Boy Smart Energy
Battery Use by the Sunny Tripower Smart Energy
Battery and hybrid inverters
Overload Capability of Battery Inverters and Hybrid Inverters
Maximum Power Consumption of the Loads with Sunny Island
Maximum Power Consumption of the Loads with Sunny Boy Smart Energy
Maximum Power Consumption of the Loads with Sunny Tripower Smart Energy
Functions of the Sunny Boy Smart Energy for the Battery-Backup System
Functions of the Sunny Tripower Smart Energy for the Battery-Backup System
Communication
Electrical Connection
Connection of Battery-Backup Systems with Sunny Island
Automatic Transfer Switching Device for Single-Phase Battery-Backup System with All-Pole Disconnection
Circuitry Overview for single-Phase Battery-Backup System with All-Pole Disconnection
Automatic Transfer Switching Device for Three-Phase Battery-Backup System with All-Pole Disconnection
Circuitry Overview for Three-Phase Battery-Backup System with All-Pole Disconnection
Automatic Transfer Switching Device for Single-Phase Battery-Backup System without All-Pole Disconnection
Circuitry Overview for Single-Phase Battery-Backup System without All-Pole Disconnection
Automatic Transfer Switching Device for Three-Phase Battery-Backup System without All-Pole Disconnection
Circuitry Overview for Three-Phase Battery-Backup System without All-Pole Disconnection
Connection of Battery-Backup Systems with Sunny Boy Smart Energy
Circuitry overview for battery backup (single-phase - TN)
Circuitry overview for battery backup (single-phase - TT)
Circuitry overview for battery backup with phase coupling (three-phase - TN)
Connection of Battery-Backup Systems with Sunny Tripower Smart Energy
Circuitry Overview for Three-Phase Battery-Backup System with Optional Transfer Switch
Automatic Transfer Switching Device
Requirements of VDE Application Guide 2510-2
Procurement of the Automatic Transfer Switching Device
Rules for the Connection of the Automatic Transfer Switching Device
For Battery-Backup Systems with Sunny Island: Material Lists for Automatic Transfer Switching Devices
Material for Automatic Transfer Switching Device of a Single-Phase Battery-Backup System with All-Pole Disconnection
Material for Automatic Transfer Switching Device of a Three-Phase Battery-Backup System with All-Pole Disconnection
Material for Automatic Transfer Switching Device of a Single-Phase Battery-Backup System without All-Pole Disconnection
Material for Automatic Transfer Switching Device of a Three-Phase Battery-Backup System without All-Pole Disconnection
Sequence of the Switching Operations in the Automatic Transfer Switching Device
Switching Operations in the Automatic Transfer Switching Device for Sunny Boy Smart Energy
Switching Operations in the Automatic Transfer Switching Device for Sunny Island
Planning Mounting Locations
Explanation of Used Terms
