SMA storage system with inverter for low-voltage batteries
SMA Energy System Home with inverter for low-voltage batteries
SMA Energy System Home | Sunny Island | Sunny Island with Sunny Home Manager | Sunny Island with Sunny Home Manager and additional energy meter |
|---|---|---|---|
PV inverter | ✓ | ✓ | ✓1) |
Sunny Home Manager | - | ✓ | ✓ |
SMA Energy Meter | ✓ | - | 1 time |
SMA radio-controlled sockets | - | • | • |
Compatible intelligent loads (e.g. EV Charger) | - | • | • |
Sunny Island with battery fuse | ✓ | ✓ | ✓ |
Approved low-voltage battery | ✓ | ✓ | ✓ |
1) PV inverters from third-party providers can be integrated into the SMA Energy System Home with Sunny Island, Sunny Home Manager and additional energy meter. The energy meter must then be installed as PV generation meter ( > PV Inverters in the SMA Energy System Home). It is recommended to use the SMA Energy Meter as an additional energy meter.
✓ Required | ‒ Not required | • Optional |
SMA Energy System Home with inverter for high-voltage batteries
SMA Energy System Home | Sunny Boy Storage | Sunny Boy Storage with Sunny Home Manager | Sunny Boy Storage with Sunny Home Manager and additional energy meter |
|---|---|---|---|
PV inverter | ✓ | ✓ | ✓2) |
Sunny Home Manager | - | ✓ | ✓ |
SMA Energy Meter | ✓ | - | 1 time |
SMA radio-controlled sockets | - | • | • |
Compatible intelligent loads (e.g. EV Charger) | - | • | • |
Sunny Boy Storage 2.5 / 3.7 / 5.0 / 6.0 | ✓ | ✓ | ✓ |
Approved high-voltage battery | ✓ | ✓ | ✓ |
2) PV inverters from third-party providers can be integrated into the SMA Energy System Home with Sunny Boy Storage, Sunny Home Manager and additional energy meter. The energy meter must then be installed as PV generation meter ( > PV Inverters in the SMA Energy System Home). It is recommended to use the SMA Energy Meter as PV generation meter.
✓ Required | ‒ Not required | • Optional |

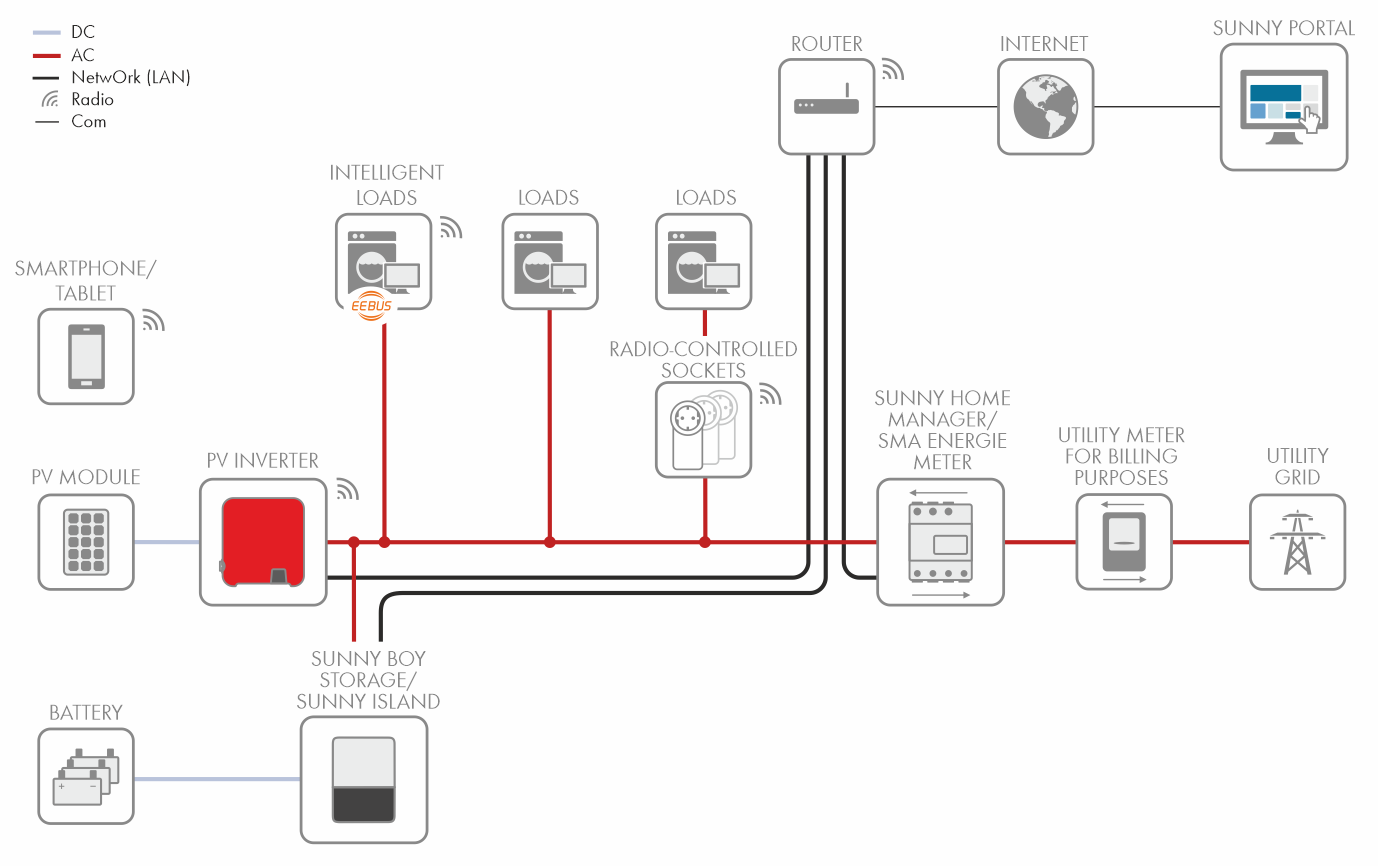

SMA storage system with inverter batteries
PV systems can be equipped with an individually dimensioned battery-storage system and with two different battery inverters, the Sunny Island for low-voltage batteries or the Sunny Boy Storage for high-voltage batteries. The system size and power of the PV inverters can also be selected to suit the requirements of each household. In the SMA Smart Home, the SMA storage systems are typically integrated into the local network via LAN or Wi-Fi (e.g. a router).
SMA Energy System Home with hybrid inverter for high-voltage batteries
SMA Energy System Home | Sunny Tripower Smart Energy | Sunny Tripower Smart Energy with Sunny Home Manager |
|---|---|---|
PV inverter | ✓ | ✓ |
Sunny Home Manager | - | ✓ |
SMA Energy Meter | ✓ | - |
SMA radio-controlled sockets | - | • |
Compatible intelligent loads (e.g. EV Charger) | - | • |
Sunny Tripower 5.0 / 6.0 / 8.0 / 10.0 Smart Energy | ✓ | ✓ |
Approved high-voltage battery | ✓ | ✓ |
3) PV inverters from third-party providers can be integrated into the SMA Energy System Home with Sunny Tripower Smart Energy, Sunny Home Manager and additional energy meter. The energy meter must then be installed as PV generation meter ( > PV Inverters in the SMA Energy System Home). It is recommended to use the SMA Energy Meter as PV generation meter.
✓ Required | ‒ Not required | • Optional |
