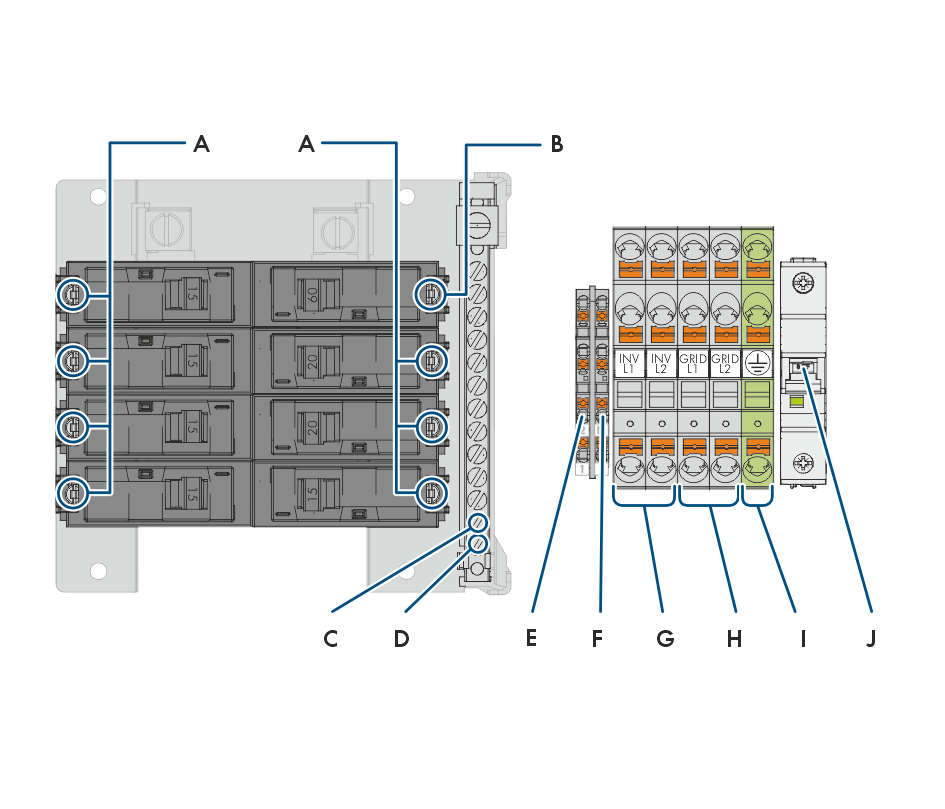

Overview of the Connection Area

A

Loads connection

B

Connection of 60 A miniature circuit breaker for sub-distribution

C

Connections for the AC cables N to the utility grid

D

Connections for the AC cables N to the inverter

E

Connection for the AC cable SPS IN

F

Connection for the AC cable SPS OUT

G

Connections for the AC cables L1 and L2 to the inverter

H

Connections for the AC cables L1 and L2 to the utility grid

I

Connection for the grounding cable from the utility grid and the inverter

J

6 A pre-fusing of the monitoring relay
