Removing the grounding conductor connection on the inverter

Procedure:

  1. Disconnect the inverter from voltage sources (see inverter manual).
    2. 14887125772

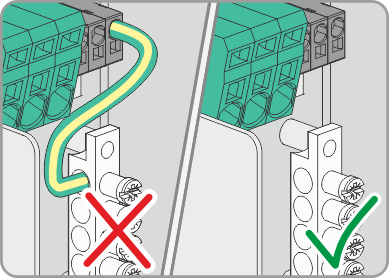

  2. If present, remove the grounding conductor connection between N and the busbar . To do this, unlock the terminal with a flat-blade screwdriver (3.5 mm).
    Overview of the Connection Area
    Connecting the connections to the automatic transfer switching device
