Optional: Remove lid
If necessary, you can remove the lid of the enclosure of the automatic transfer switching device. This can be helpful during installation or electrical connection, for example.
Procedure:

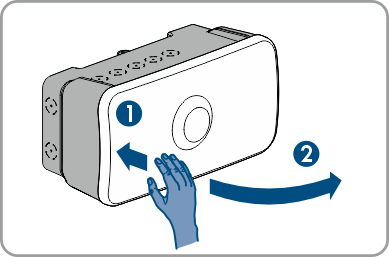

- Open the lid of the enclosure. To do this, press on the left side of the lid with your hand.

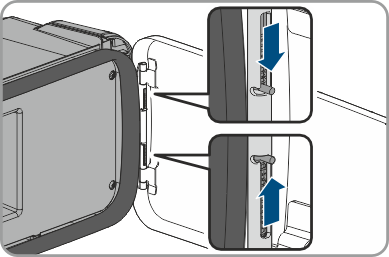

- Open the hinge. To do this, press the two latches down or up.

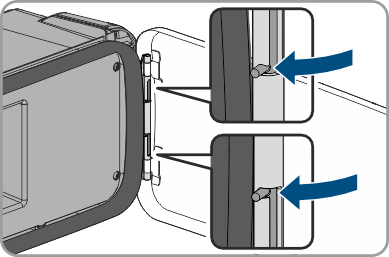

Information: The hinge is easier to open if the enclosure lid is not opened all the way back. - Slide the two latches into the opening of the hinge.

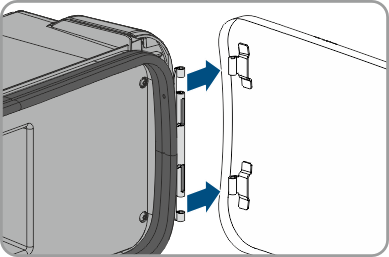

- Remove the lid.
