Product Description

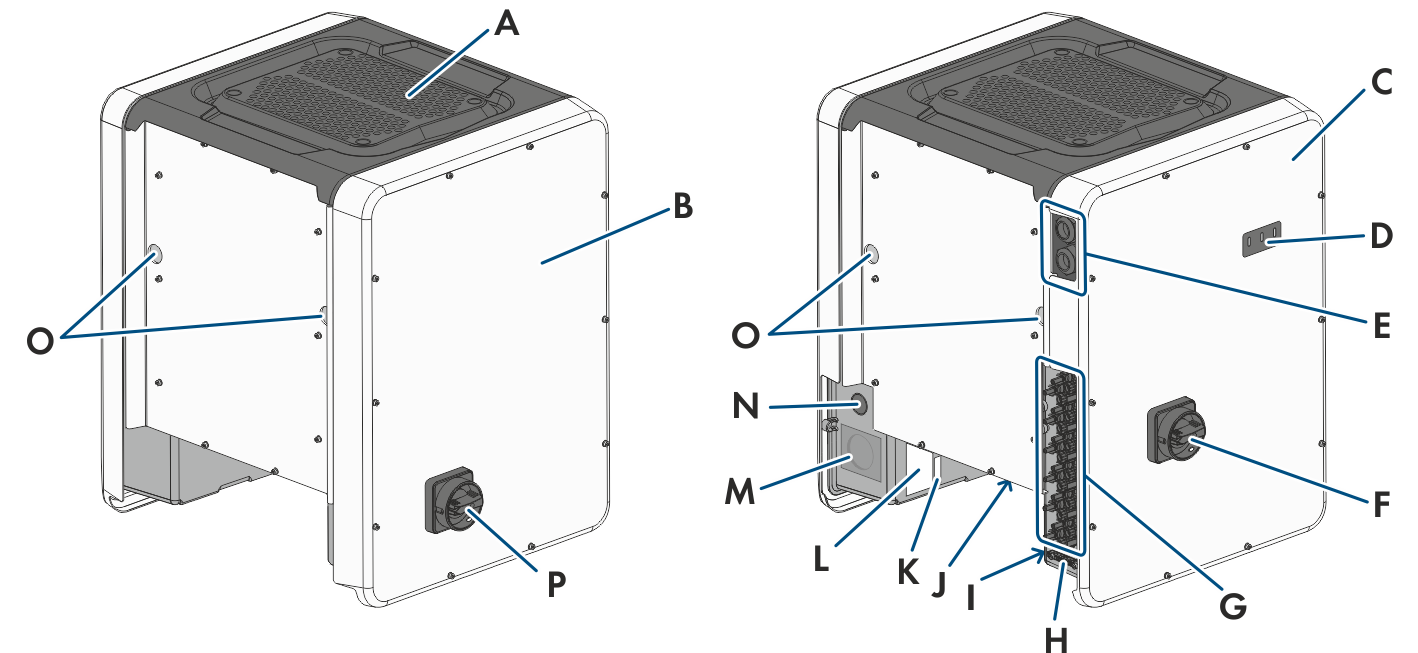

Design of the product

Position	Designation
A	Cover
B	AC Connection Unit
C	DC Connection Unit
D	LEDs The LEDs indicate the operating state of the product.
E	Cable glands for data cables
F	DC load-break switch
G	DC connector
H	Equipment grounding bar for the equipment grounding conductor of the PV array
I	Warning label with compliance information
J	Fan bracket with three fans
K	Type label The type label clearly identifies the product. The type label must remain permanently attached to the product. You will find the following information on the type lable: Device type (Model) Serial number (Serial No. or S/N) Date of manufacture Device-specific characteristics
L	Additional label with details for registration in Sunny Portal and WLAN password: Identification key (PIC) for registration in Sunny Portal Registration ID (RID) for registration in Sunny Portal WLAN password (WPA2-PSK) for the direct connection to the user interface of the inverter via WLAN
M	Enclosure opening for AC connection
N	Enclosure opening for additional cable
O	Enclosure opening for carrying handle
P	AC load-break switch
