Overview of Connecting Plate

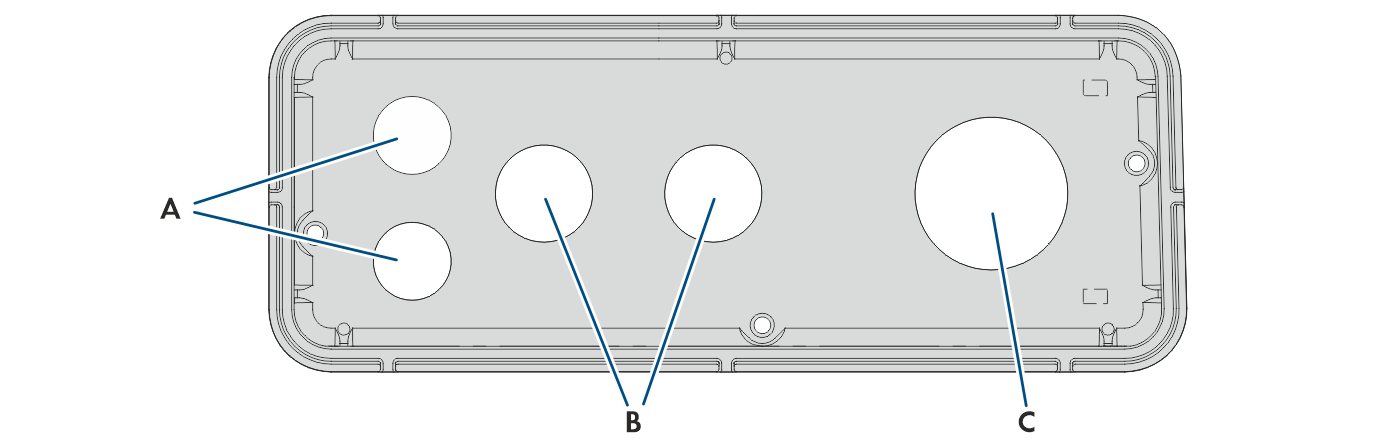

Position of enclosure openings
Position | Designation |
|---|---|
A | Entry for network cables and battery communication cables (M32) |
B | Entry for DC cable (M32) |
C | Entry for AC cable (M63) |
Position of enclosure openings
Position | Designation |
|---|---|
A | Entry for network cables and battery communication cables (M32) |
B | Entry for DC cable (M32) |
C | Entry for AC cable (M63) |
